Instrument Lower Panel LH

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove fuse box cover.

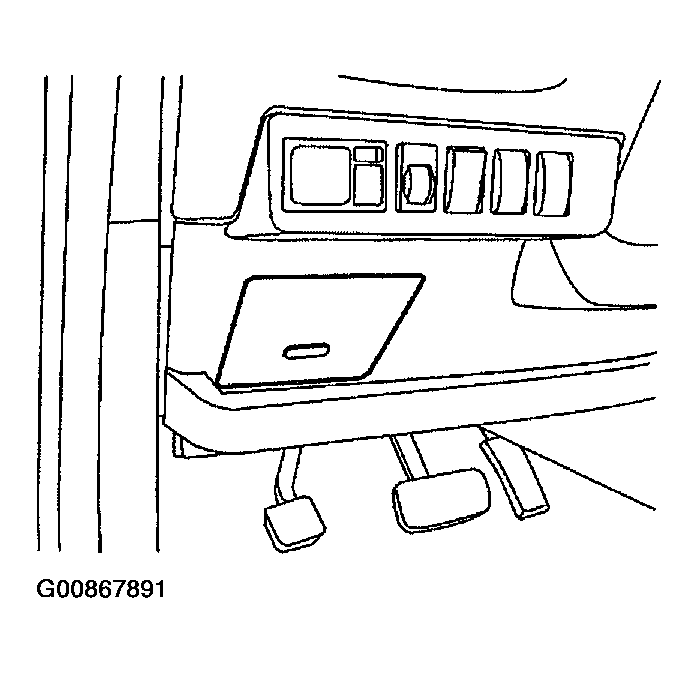

Fig 1: Removing Fuse Box Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws using power tool, and remove instrument lower panel LH.
- Pull to disconnect clips.
- Disconnect aspirator tube and in-vehicle temperature sensor
- Disconnect harnesses from back of instrument lower panel LH.

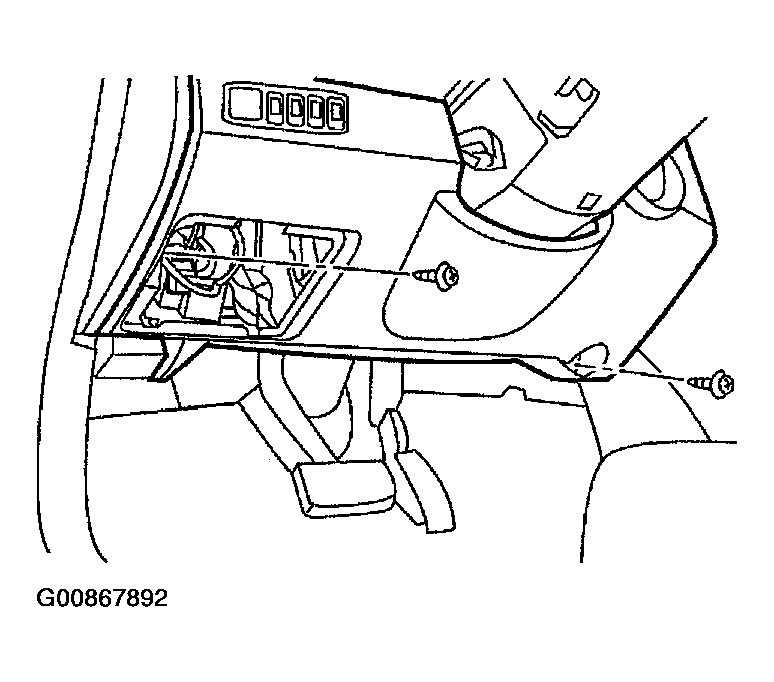

Fig 2: Removing Instrument Lower Panel LH

Courtesy of NISSAN MOTOR CO., U.S.A.
