Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fascia. Refer to REMOVAL AND INSTALLATION .
  2. Remove the headlamp mounting bolts.
  3. Pull the headlamp toward the front of the vehicle, disconnect connectors, and remove from vehicle.

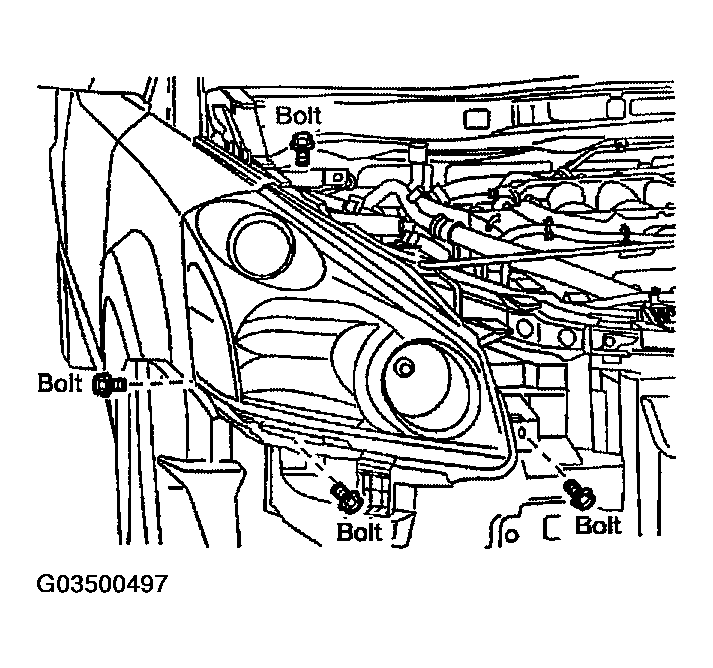

    Fig 1: Removing Headlamp Mounting Bolts
    G03500497Courtesy of NISSAN MOTOR CO., U.S.A.
