Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

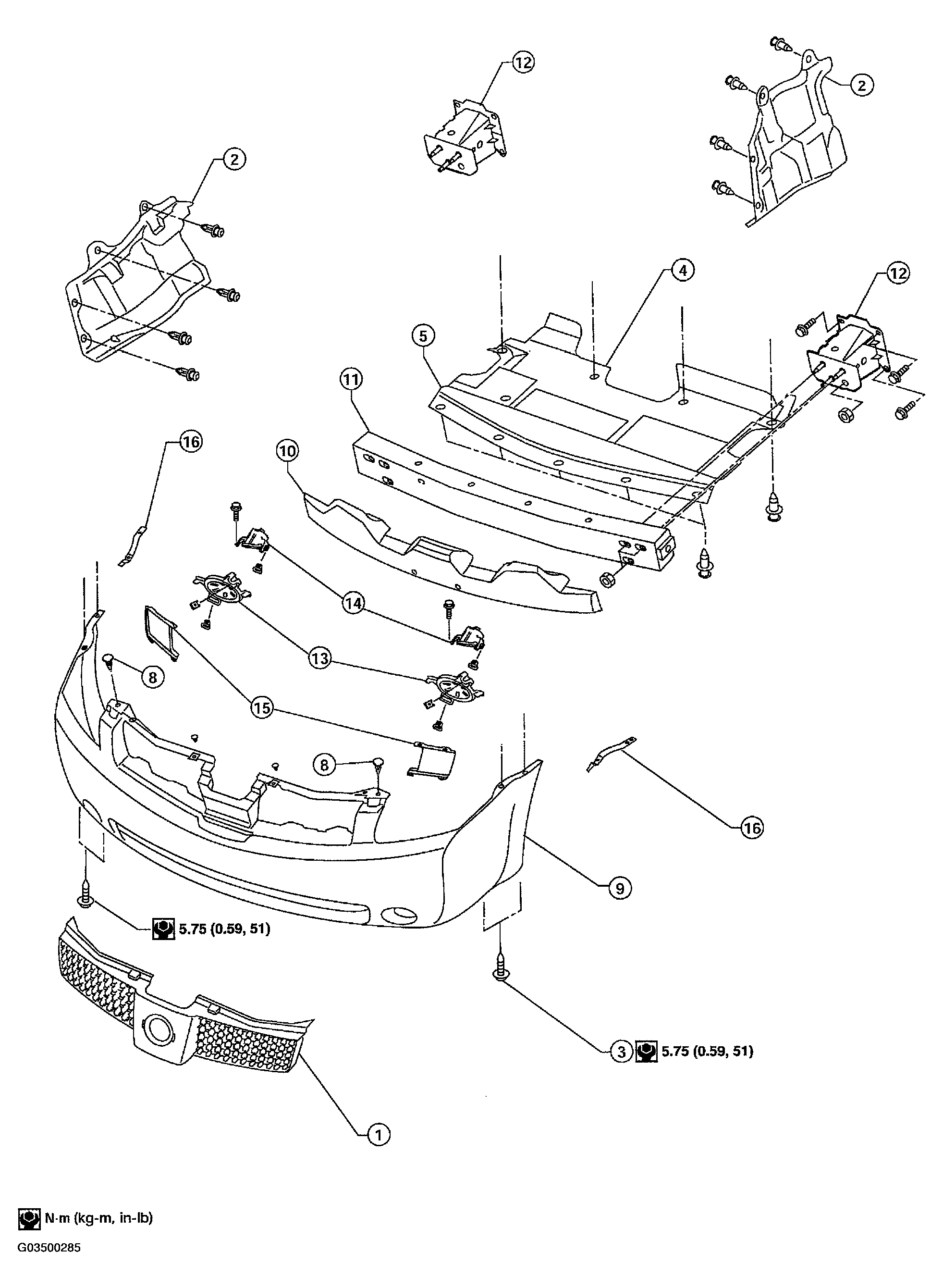

Fig 1: Removing Front Bumper with Torque Specs
G03500285Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove radiator grille. Refer to "FRONT GRILLE ".
  2. Remove RH and LH splash guards.
  3. Partially remove fender protector. Refer to "FENDER PROTECTOR ".
  4. Remove engine underside cover.
  5. Remove engine underside cover seal.
  6. Disconnect fog lamps, if equipped.
  7. Remove screws from each side of fascia.
  8. Remove clips from top of fascia.
  9. Remove front bumper fascia.
  10. Remove energy absorbing foam from front bumper.
  11. Remove front bumper reinforcement.
  12. Remove front bumper stay assemblies.
  13. Remove front bumper RH and LH finishers, if equipped.
  14. Remove fog lamps, if equipped.
  15. Remove RH and LH deflectors.
  16. Remove side front bumper RH and LH brackets.

Installation is in the reverse order of removal.
