Check Power Supply And Ground Circuit

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSES OR FUSIBLE LINK

Check for blown-out fuses or fusible link.

UNIT AND FUSE SPECIFICATION CHART

Unit	Power source	Fuse No.
BCM	Battery	j
	Battery	3
	Ignition switch ON or START position	16
	Ignition switch ACC or ON position	4
IPDM E/R	Battery	36
		38
		40
		45

Refer to "WIRING DIAGRAM ---H/LAMP--- ".

OK or NG

OK: GO TO 2.
NG: If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to SYSTEM WIRING DIAGRAMS .

CHECK POWER SUPPLY CIRCUIT

Disconnect BCM connector.
Check voltage between BCM harness connector and ground.

BCM TERMINAL (11, 38, 42 & 55) VOLTAGE CHART

Terminals			Ignition switch position
(+)		(-)	OFF	ACC	ON
Connector	Terminal (Wire color)	(-)	OFF	ACC	ON
M18	11 (V)	Ground	0V	Battery voltage	Battery voltage
M18	38 (R)		0V	0V	Battery voltage
M19	42 (Y/G)		Battery voltage	Battery voltage	Battery voltage
M19	55 (W/B)		Battery voltage	Battery voltage	Battery voltage

OK or NG

OK: GO TO 3.
NG: Check harness for open between BCM and fuse.

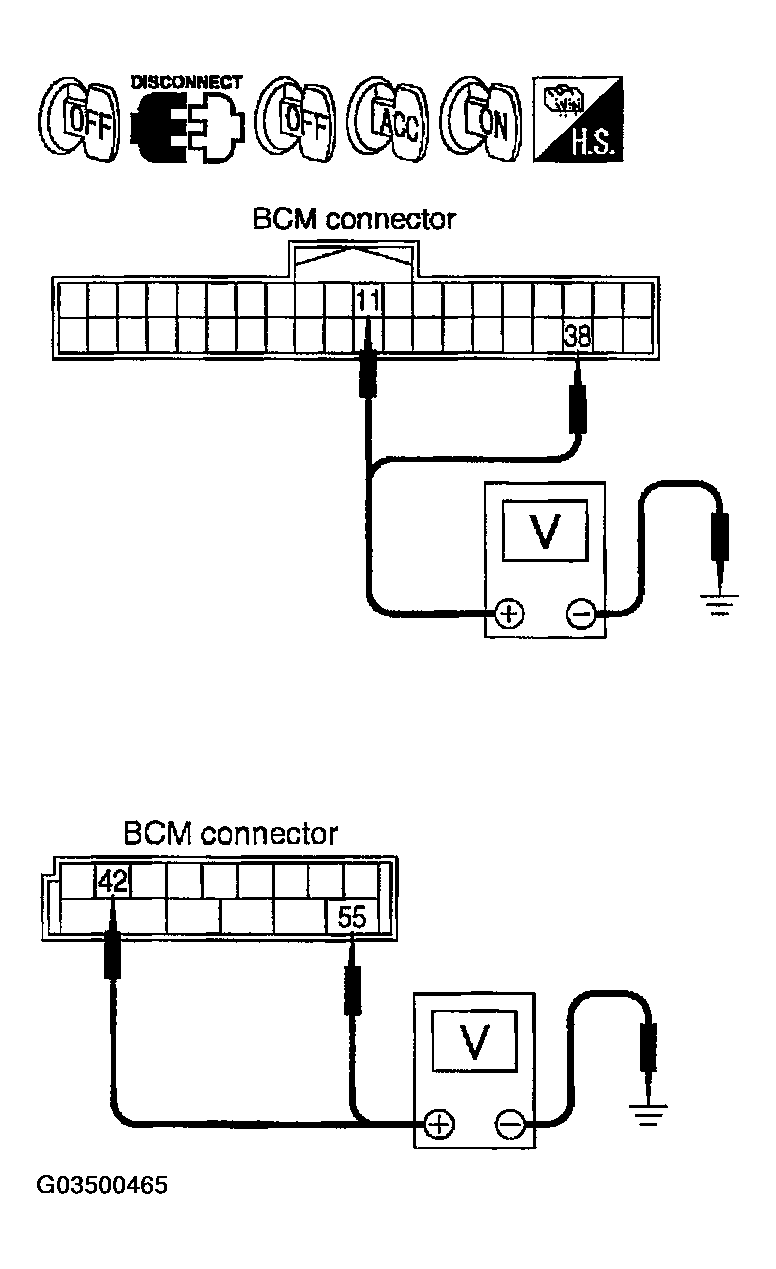

Fig 1: Checking Voltage Between BCM Harness Connector & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

BCM TERMINAL (49& 52) TERMINAL CONTINUITY CHART

Terminals			Continuity
(+)		(-)
Connector	Terminal (Wire color)
M19	49 (B)	Ground	Yes
	52(B/W)

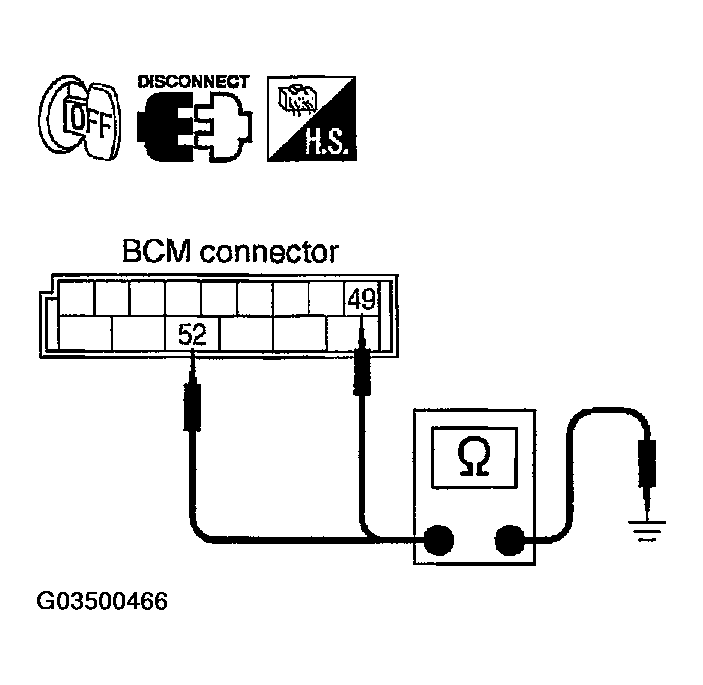

Fig 2: Checking Continuity Between BCM Harness Connector & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: INSPECTION END.
NG: Check ground circuit harness.
