Wiring Diagram --- H/LAMP ---

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

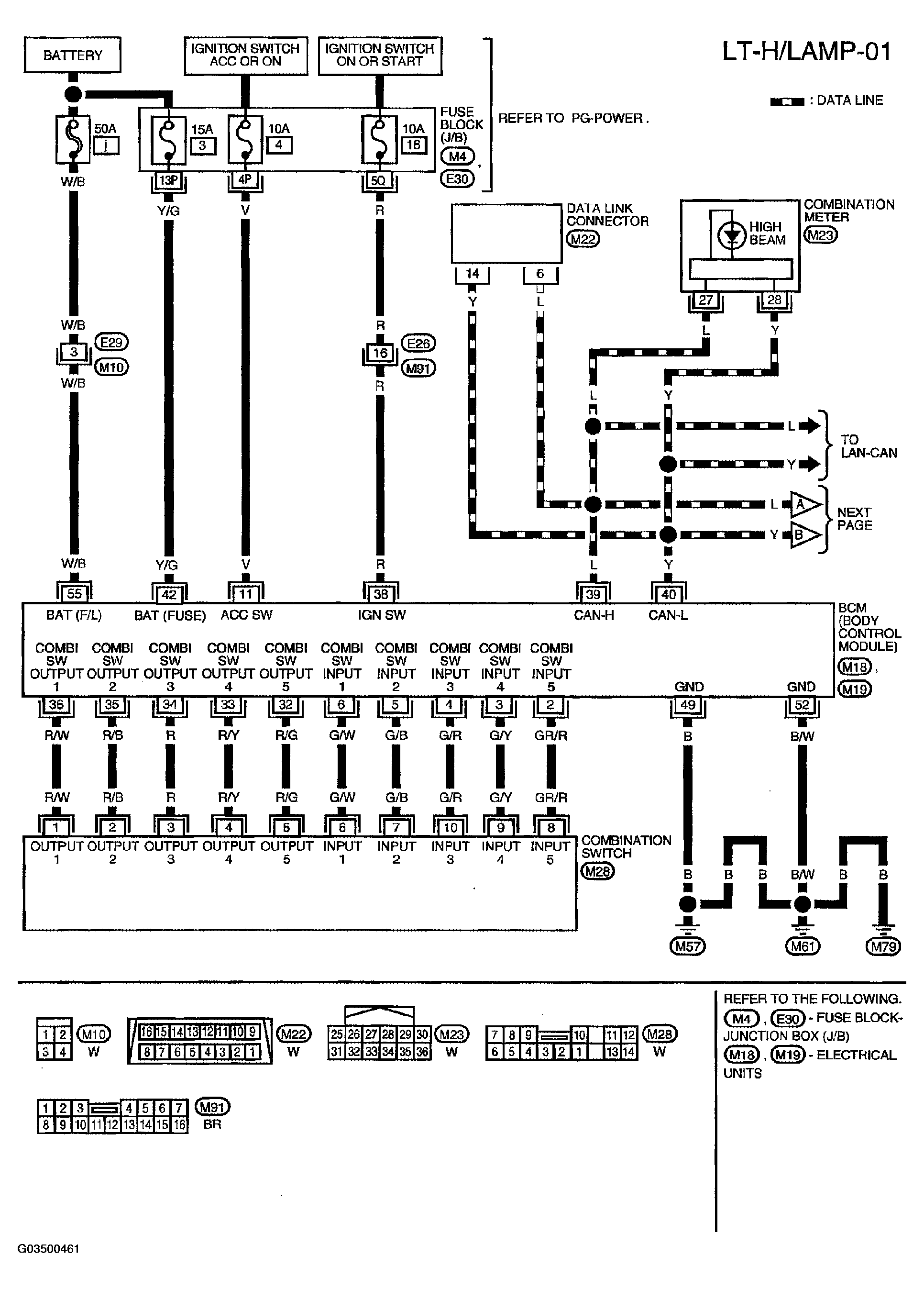

Fig 1: Wiring Diagram - LT-H/LAMP-01

Courtesy of NISSAN MOTOR CO., U.S.A.

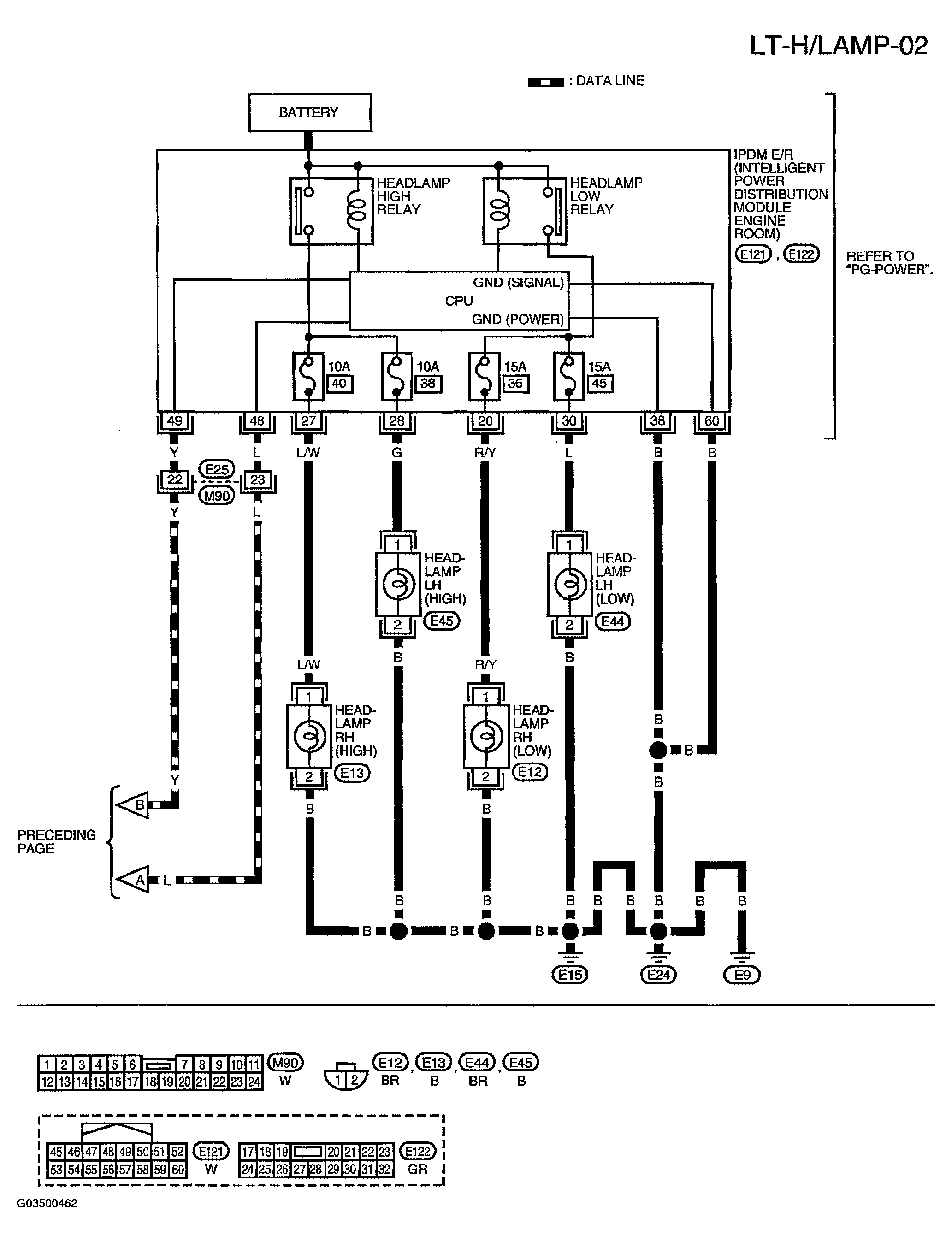

Fig 2: Wiring Diagram - LT-H/LAMP-02

Courtesy of NISSAN MOTOR CO., U.S.A.
