Driver Side

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower driver instrument panel. Refer to "INSTRUMENT LOWER PANEL LH ".
  2. Remove the center console trim panel. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect the intake door motor electrical connector.
  4. Remove the three screws and remove the intake door motor.
  5. Installation is in the reverse order of removal.

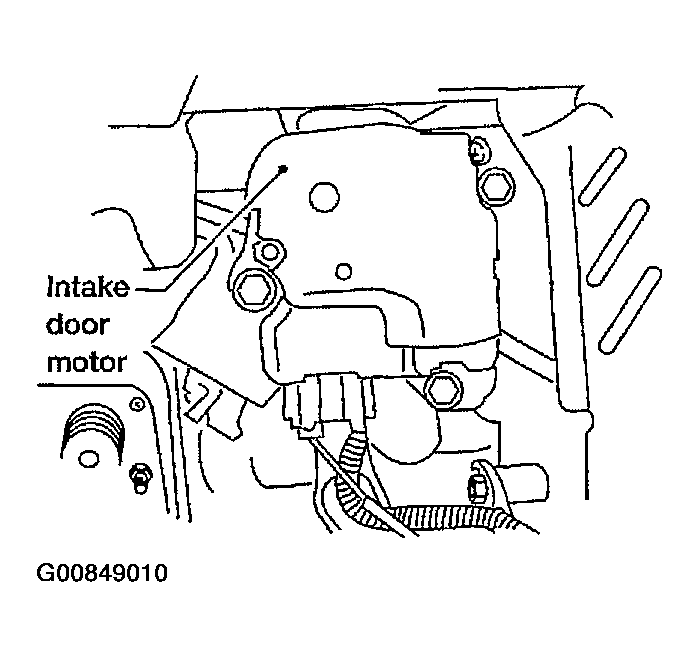

    Fig 1: Removing Intake Door Motor
    G00849010Courtesy of NISSAN MOTOR CO., U.S.A.
