A/T Does Not Shift: D2 --> D3

SYMPTOM:

A/T does not shift from D2 to D3 at the specified speed  .

1. CHECK SYMPTOM

   Are "Vehicle Does Not Creep Forward In D Or L Position" and "Vehicle Cannot Be Started From D1" OK?

   Yes or No

   1. Yes: GO TO 2.
   2. No: Go to "VEHICLE DOES NOT CREEP FORWARD IN D OR L POSITION " and "VEHICLE CANNOT BE STARTED FROM D1 ".
2. ADJUST CONTROL CABLE

   Check control cable. Refer to "CONTROL CABLE ADJUSTMENT "

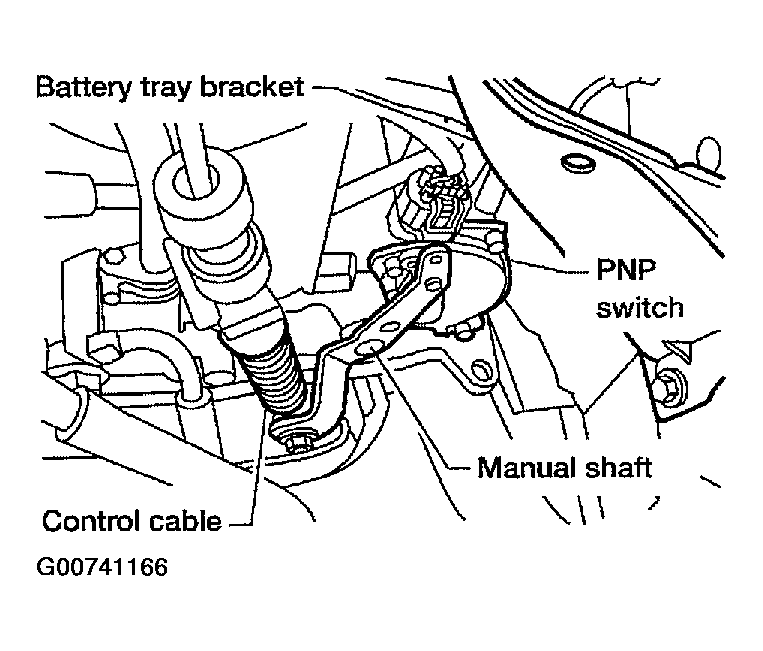

   Fig 1: Adjusting Control Cable

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 3.
   2. NG: Adjust control cable. Refer to "CONTROL CABLE ADJUSTMENT ".
3. CHECK VEHICLE SPEED SENSOR-A/T AND VEHICLE SPEED SENSOR-MTR CIRCUIT

   Check vehicle speed sensor-A/T (revolution sensor) and vehicle speed sensor-MTR circuit. Refer to "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR) " and "DTC VEHICLE SPEED SENSOR MTR ".

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace vehicle speed sensor-A/T (revolution sensor) and vehicle speed sensor-MTR circuits.
4. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR

   Check accelerator pedal position (APP) sensor. Refer to "DTC P1705 THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR] ".

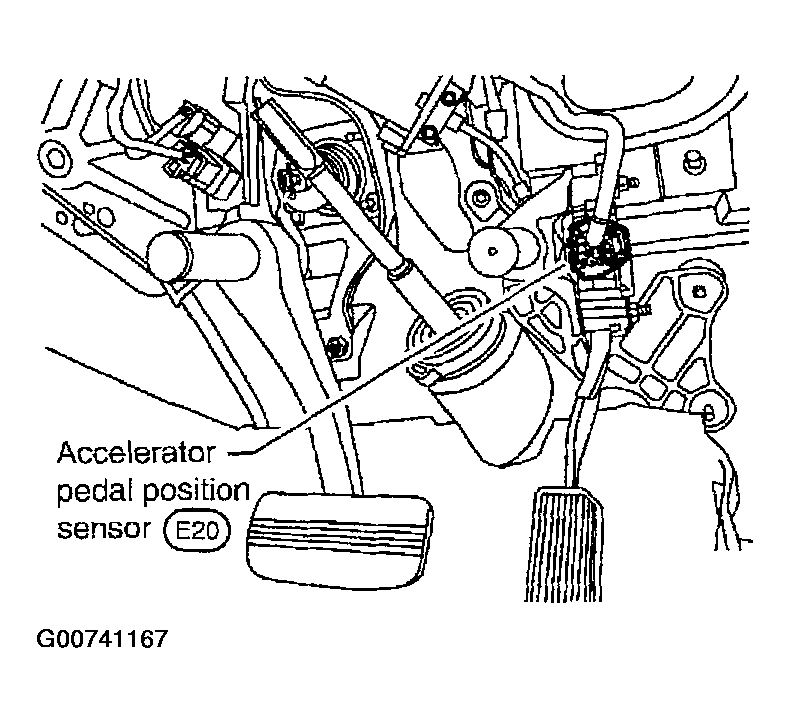

   Fig 2: Identifying Accelerator Pedal Position (APP) Sensor

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 5.
   2. NG: Repair or replace accelerator pedal position (APP) sensor circuit.
5. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
      Fig 3: Checking A/T Fluid Condition

      Courtesy of NISSAN MOTOR CO., U.S.A.
   2. Check A/T fluid condition.

   OK or NG

   1. OK: GO TO  7.
   2. NG: GO TO 6.
6. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
   2. Check the following items:
      • Shift valve B
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter
   3. Disassemble A/T.
   4. Check the following items:
      • Servo piston assembly
      • High clutch assembly
      • Brake band

   OK or NG

   1. OK: GO TO  8.
   2. NG: Repair or replace damaged parts.
7. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
   2. Check the following items:
      • Shift valve B
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter

   OK or NG

   1. OK: GO TO 8.
   2. NG: Repair or replace damaged parts.
8. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 9.
9. CHECK TCM INSPECTION
   1. perform TCM input/output signal inspection. Refer to "TCM TERMINALS AND REFERENCE VALUE ".
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
