Vehicle Does Not Creep Forward in D or L Position

SYMPTOM:

Vehicle does not creep forward when selecting D or L position  .

1. CHECK A/T FLUID LEVEL

   Check A/T fluid level again.

   OK or NG

   1. OK: GO TO 2.
   2. NG: Refill ATF.
   Fig 1: Checking A/T Fluid Level

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK LINE PRESSURE

   Check line pressure at idle with selector lever in D position. Refer to "LINE PRESSURE TEST ".

   OK or NG

   1. OK: GO TO  4.
   2. NG: GO TO 3.
   Fig 2: Checking Line Pressure

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
   2. Check the following items:
      • Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)
      • Line pressure solenoid valve
   3. Disassemble A/T.
   4. Check the following item:
      • Oil pump assembly

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace damaged parts.
4. CHECK STALL REVOLUTION

   Check stall revolution with selector lever in D position. Refer to "STALL TEST ".

   OK or NG

   1. OK: GO TO  6.
   2. NG: GO TO 5.

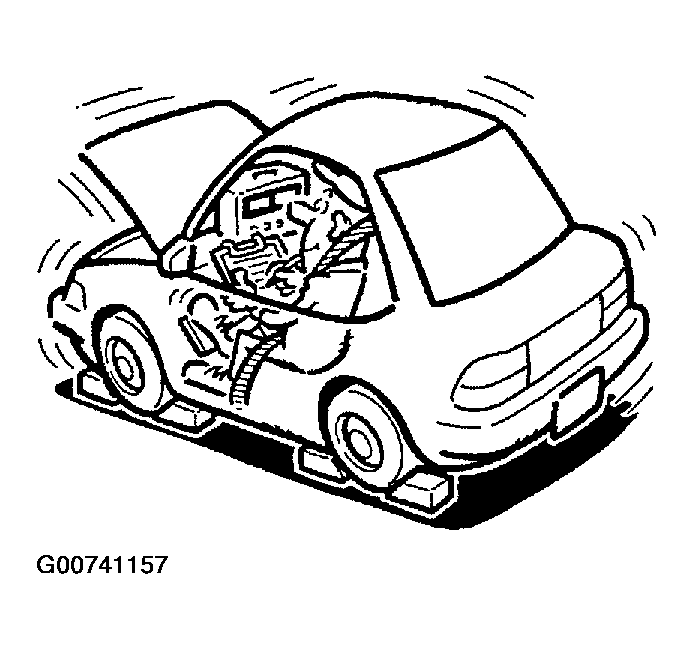

   Fig 3: Checking Stall Revolution

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. DETECT MALFUNCTIONING ITEM
   1. Disassemble A/T.
   2. Check the following items:
      • Reverse clutch assembly
      • Forward clutch assembly
      • Forward one-way clutch
      • Low one-way clutch
      • High clutch assembly

   OK or NG

   1. OK: GO TO 6.
   2. NG: Repair or replace damaged parts.
6. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.

   OK or NG

   1. OK: GO TO  8.
   2. NG: GO TO 7.
   Fig 4: Checking A/T Fluid Condition

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. DETECT MALFUNCTIONING ITEM
   1. Disassemble A/T.
   2. Check the following items:
      • Reverse clutch assembly
      • Forward clutch assembly
      • Forward one-way clutch
      • Low one-way clutch
      • High clutch assembly

   OK or NG

   1. OK: GO TO 8.
   2. NG: Repair or replace damaged parts.
8. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 9.
9. CHECK TCM INSPECTION
   1. perform TCM input/output signal inspection. Refer to "TCM TERMINALS AND REFERENCE VALUE ".
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
