Cruise Test - Part 3

1. Confirm overdrive control switch is in ON position.
2. Confirm gear selector lever is in D position

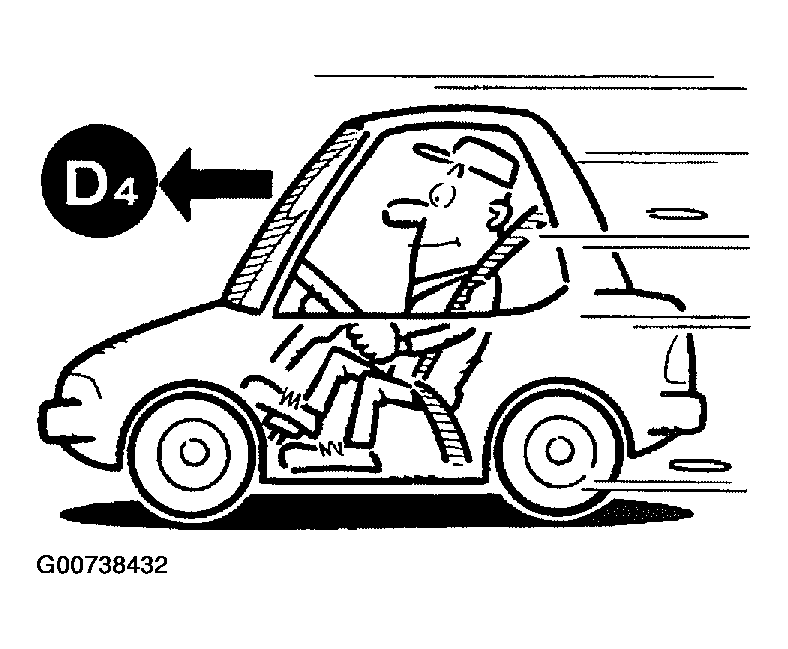

   Fig 1: Checking Vehicle Speed (D4) Position

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Accelerate vehicle using half-throttle to D4.
4. Release accelerator pedal.

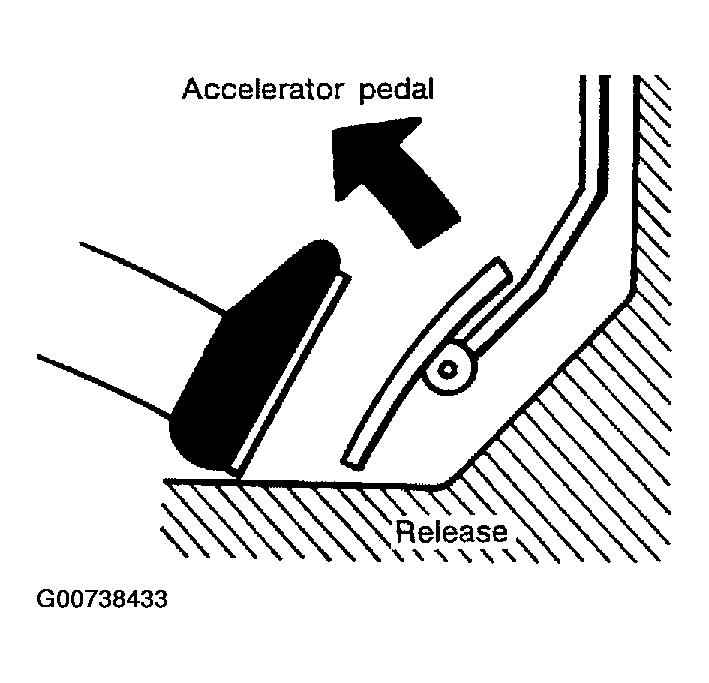

   Fig 2: Releasing Accelerator Pedal

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Set overdrive control switch to OFF position while driving in D4.
6. Does A/T shift from D4 to D3 (O/D OFF)?

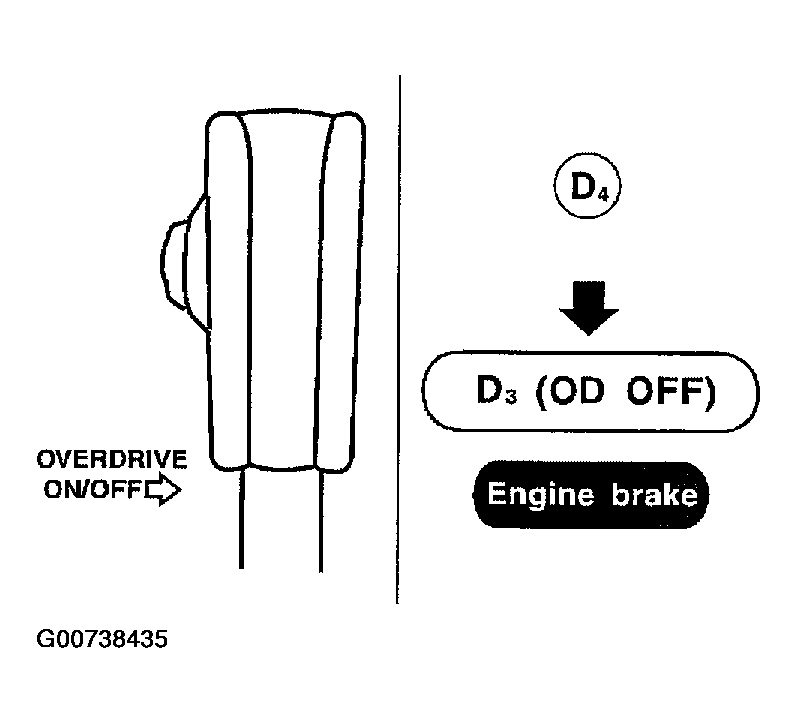

   Fig 3: Identifying A/T Shift From D4 To D3 (O/D OFF)

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Read gear position and vehicle speed  .

Yes or No

1. Yes: GO TO 2.
2. No: Mark the box of "A/T Does Not Shift: D4 --> D3, When Overdrive Control Switch ON OFF" on the DIAGNOSTIC WORKSHEET. Continue ROAD TEST.

Does vehicle decelerate by engine brake?

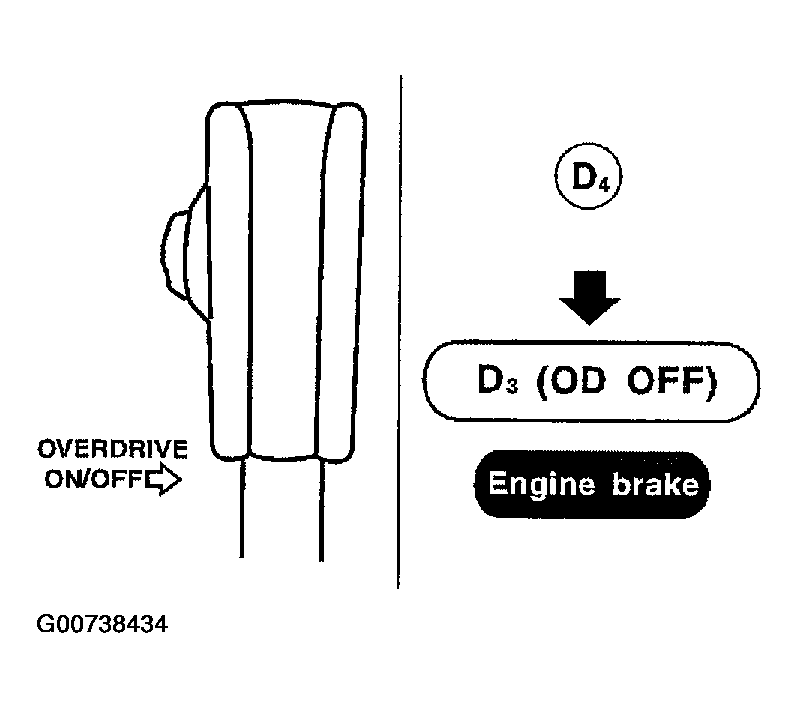

Fig 4: Checking Engine Brake

Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

1. Yes: GO TO 3.
2. No: Mark the box of "Engine Speed Does Not Return To Idle (Engine Brake in D3)" on the DIAGNOSTIC WORKSHEET. Continue ROAD TEST.

1. Move selector lever from D to L position while driving in D3 (O/D OFF).
2. Does A/T shift from D3 (O/D OFF) to L2?

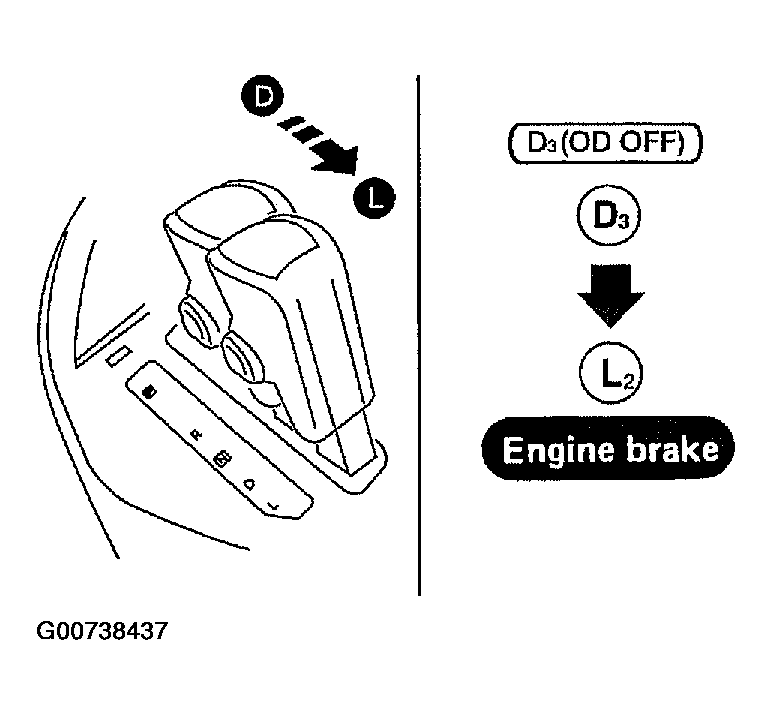

   Fig 5: Checking Shift Down (D3 To L2)

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Read gear position  .

Yes or No

1. Yes: GO TO 4.
2. No: Mark the box of "A/T Does Not Shift: D3 --> L2, When Selector Lever D --> L Position" on the DIAGNOSTIC WORKSHEET. Continue ROAD TEST.

Does vehicle decelerate by engine brake?

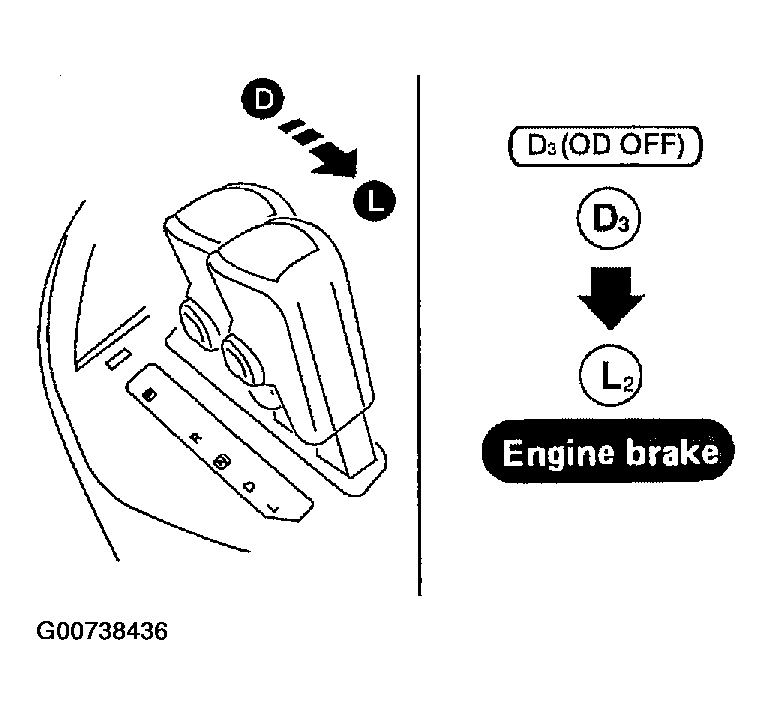

Fig 6: Checking Engine Brake

Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

1. Yes:
   1. Stop vehicle.
   2. Perform self-diagnosis. Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".
2. No: Mark the box of "Vehicle Does Not Decelerate By Engine Brake" on the DIAGNOSTIC WORKSHEET. Stop ROAD TEST.
