1. Check Before Engine Is Started

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK O/D OFF INDICATOR LAMP
    1. Park vehicle on flat surface.
    2. Move selector lever to P position.

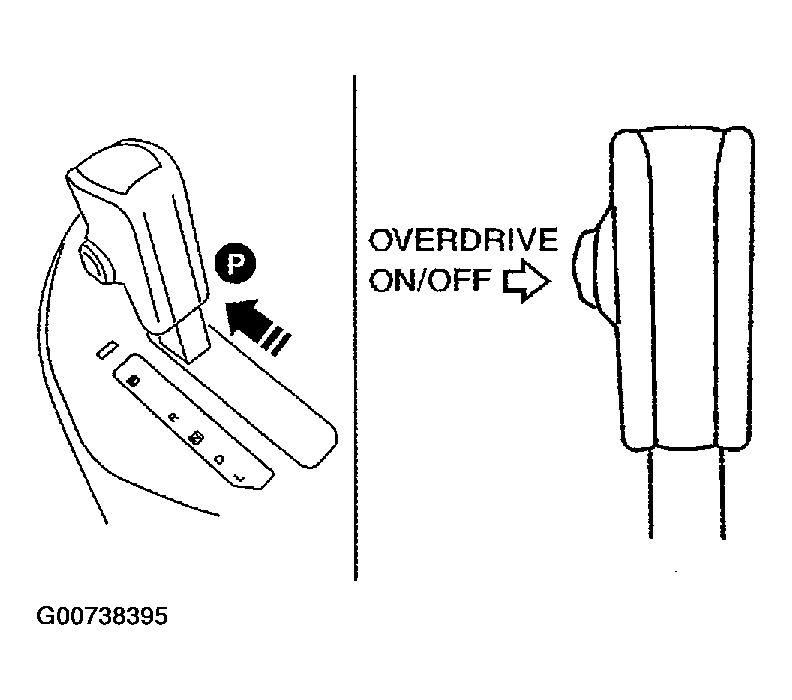

      Fig 1: Identifying Selector Lever P Position
      G00738395Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Turn ignition switch to OFF position. Wait at least 5 seconds.
    4. Set overdrive control switch to ON position.
    5. Turn ignition switch to ON position. (Do not start engine.)
    6. Does O/D OFF indicator lamp come on for about 2 seconds?

    Yes or No

    1. Yes: GO TO 2.
    2. No: Stop ROAD TEST. Go to "O/D OFF INDICATOR LAMP DOES NOT COME ON ".
  2. CHECK O/D OFF INDICATOR LAMP

    Does O/D OFF indicator lamp flicker for about 8 seconds?

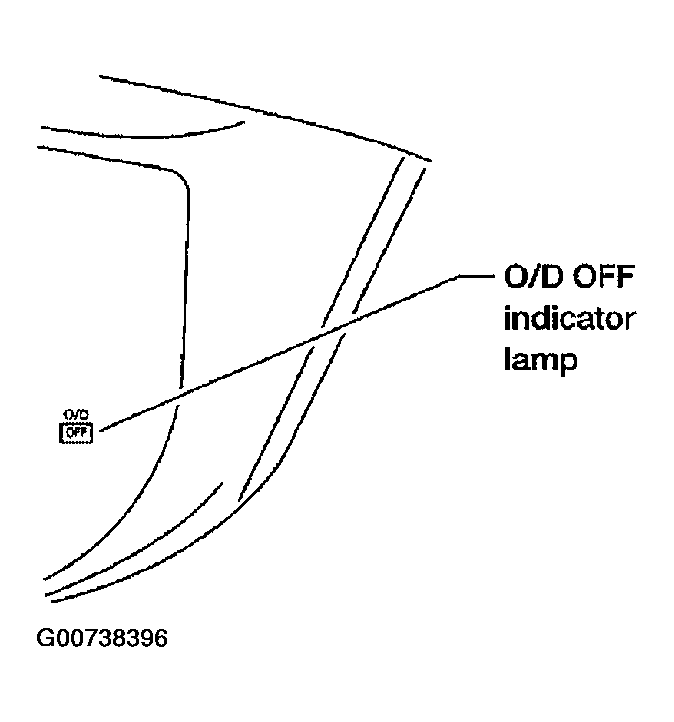

    Fig 2: Identifying O/D OFF Indicator Lamp
    G00738396Courtesy of NISSAN MOTOR CO., U.S.A.

    Yes or No

    1. Yes: TCM is under fail-safe mode. Perform self-diagnosis and check NG items on the DIAGNOSTIC WORKSHEET, DIAGNOSTIC WORKSHEET . Refer to "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II) " or "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".
    2. No:
      1. Turn ignition switch to OFF position.
      2. Perform .

        Refer to "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II) " or "TCM SELF-DIAGNOSTIC PROCEDURE (NO T00LS) ".

      3. GO TO "2. CHECK AT IDLE ".
