Without Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Drive vehicle under the following conditions:

    Selector lever in "D" and vehicle speed higher than 40 km/h (25 MPH), engine speed higher than 1, 500 RPM, throttle opening greater than 1.0/8 of the full throttle position and driving for more than 5 seconds.

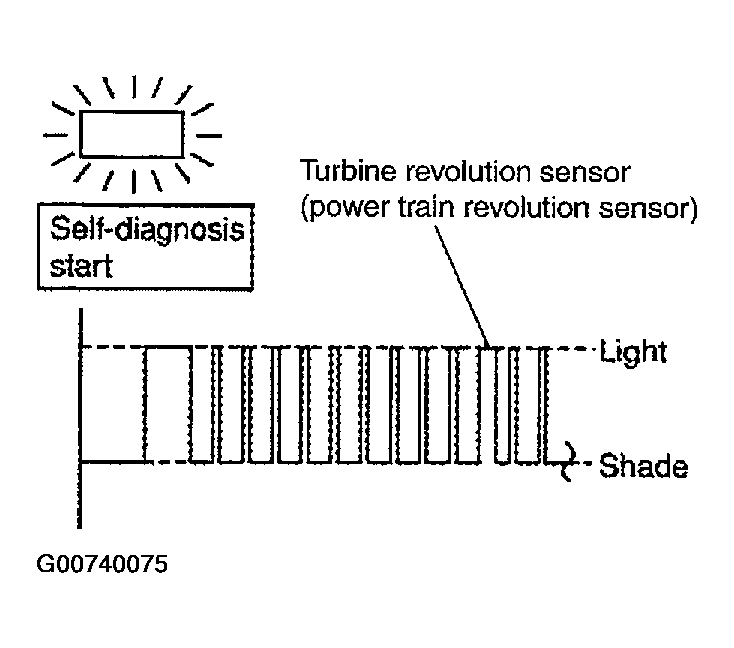

    Fig 1: Identifying Turbine Revolution Sensor Blinking Pattern
    G00740075Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Perform self-diagnosis.

    Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".
