Without CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.

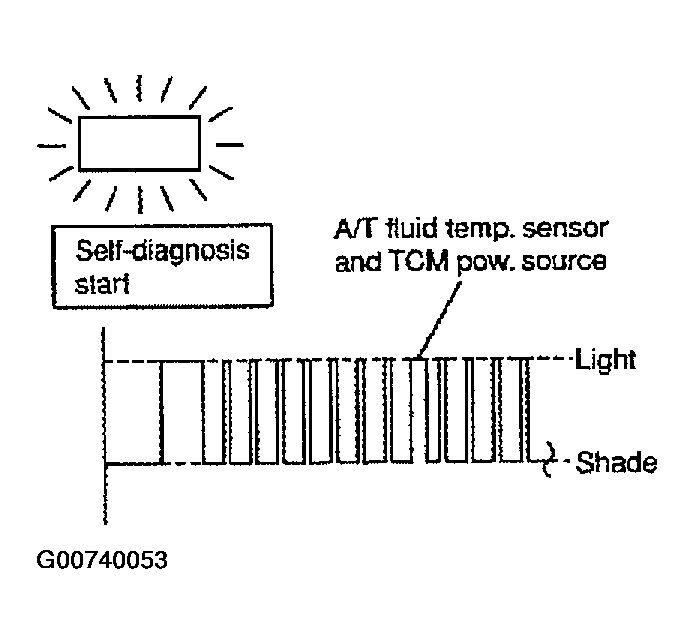

    Fig 1: Identifying A/T Fluid Temperature Sensor And TCM Power Source
    G00740053Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Drive vehicle under the following conditions:

    Selector lever in D, vehicle speed higher than 20 km/h (12 MPH).

  3. Perform self-diagnosis.

    Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".
