Diagnostic Procedure 2

Self-diagnostic results:

"DIFFERENCE OF KEY" displayed on CONSULT-II screen

1. CONFIRM SELF-DIAGNOSTIC RESULTS

   Confirm SELF-DIAGNOSTIC RESULTS "DIFFERENCE OF KEY" displayed on CONSULT-II screen.

   Is CONSULT-II screen displayed as above?

   Yes: GO TO  2 .

   No: GO TO "SYMPTOM MATRIX CHART 1  ".

   Fig 1: Diagnostic Procedure 2 - Confirming Self-Diagnostic Result

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. PERFORM INITIALIZATION WITH CONSULT-II

   Perform initialization with CONSULT-II. Re-register all NATS ignition key IDs.

   For initialization and registration of NATS ignition key IDs, refer to "CONSULT-II Operation Manual NATS-IVIS/NVIS".

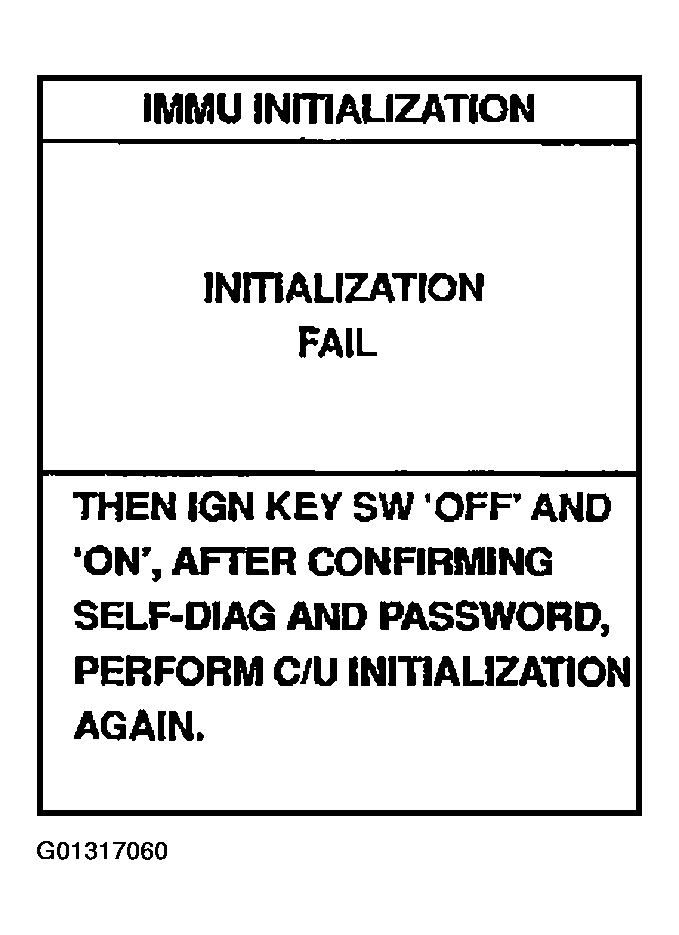

   NOTE: If the initialization is not completed or malfunctions, CONSULT-II shows message on the screen.

   Can the system be initialized and can the engine be started with re-registered NATS ignition key?

   • Yes: Ignition key ID was unregistered. Ref. part No. D
   • No: BCM (NATS control unit) is malfunctioning.
   • Replace BCM (NATS control unit). Ref. part No. A
   • Perform initialization with CONSULT-II.
   • For initialization, refer to "CONSULT-II Operation Manual NATS-IVIS/NVIS".
   Fig 2: Diagnostic Procedure 2 - Performing Initialization With CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.
