NVIS (NISSAN Vehicle Immobilizer System-NATS)
>>
Trouble Diagnoses
>>
Symptom Matrix Chart 1
Symptom Matrix Chart 1
Self-diagnosis related item

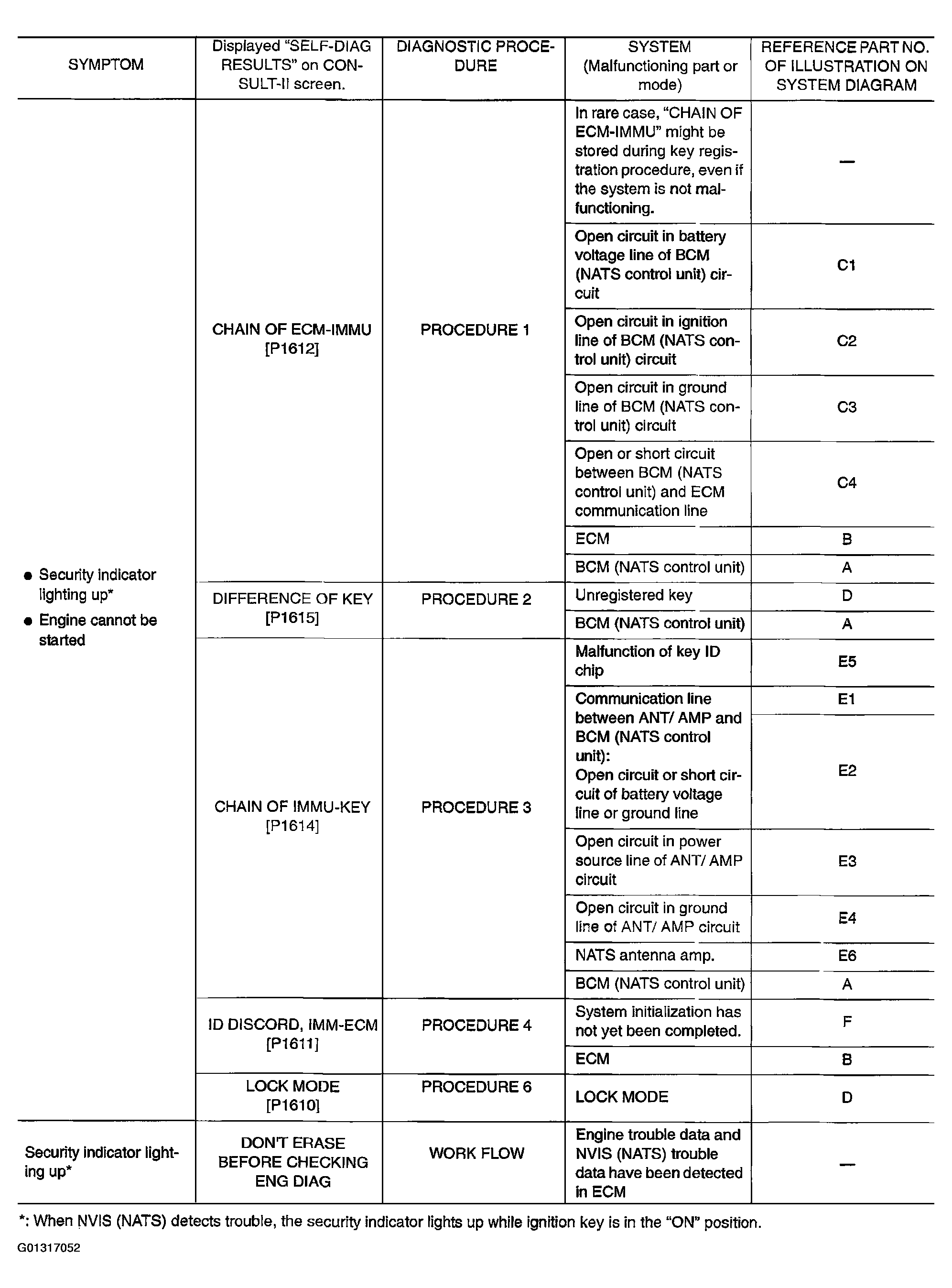

Fig 1: Symptom Matrix Chart 1 - Self-Diagnosis Related Item
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
