Diagnostic Procedure 5

Self-diagnostic results:

ID DISCORD, IMM-ECM displayed on CONSULT-II screen

1. CONFIRM SELF-DIAGNOSTIC RESULTS

   Confirm SELF-DIAGNOSTIC RESULTS ID DISCORD, IMM-ECM displayed on CONSULT-II screen.

   Fig 1: Displaying ID DISCORD, IMM-ECM On CONSULT-II Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.
   NOTE: ID DISCORD IMM-ECM:
   Registered ID of NVIS (NATS) IMMU is in discord with that of ECM.

   Is CONSULT-II screen displayed as above?

   1. Yes: GO TO 2.
   2. No: GO TO SYMPTOM MATRIX CHART 1 (SELF-DIAGNOSIS RELATED ITEM)  .
2. PERFORM INITIALIZATION WITH CONSULT-II

   Perform initialization with CONSULT-II. Re-register all NVIS (NATS) ignition key IDs.

   For initialization, refer to CONSULT-II OPERATION MANUAL IVIS/NVIS.

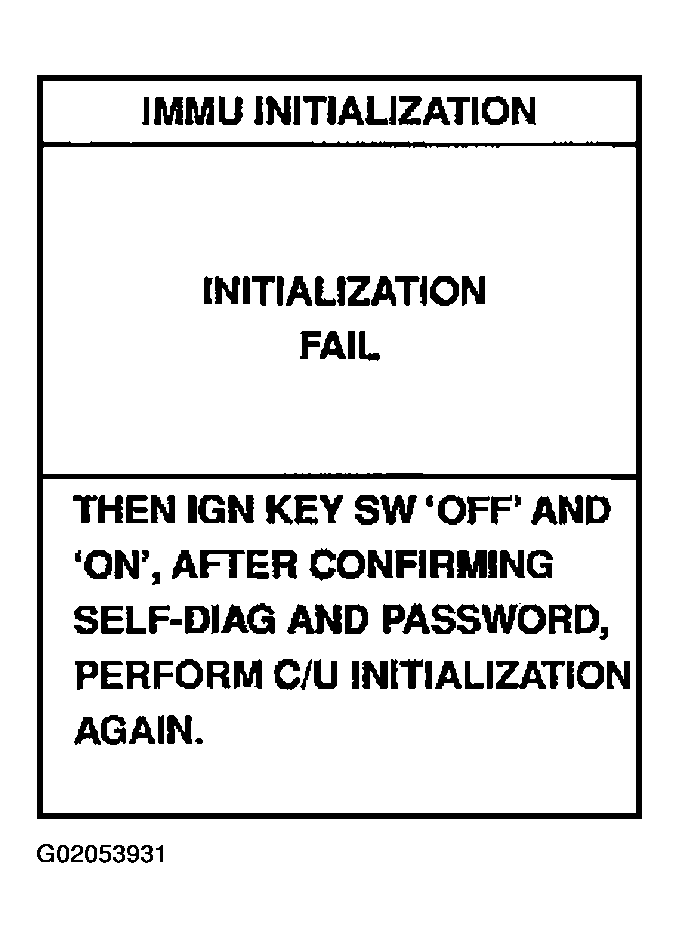

   Fig 2: Displaying INITIALIZATION FAIL On CONSULT-II Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.
   NOTE: If the initialization is not completed or fails, CONSULT-II shows above message on the screen.

   Can the system be initialized?

   1. Yes:
      • Start engine. (END)
      • (System initialization had not been completed. Ref. part No. F  )
   2. No:
      • ECM is malfunctioning.
      • Replace ECM. Ref. part No. F
      • Perform initialization with CONSULT-II.
      • For initialization, refer to CONSULT-II OPERATION MANUAL IVIS/NVIS.
