Symptom Matrix Chart 1 (Self-Diagnosis Related Item)

NOTE: Referenced part numbers are called out in Figure .

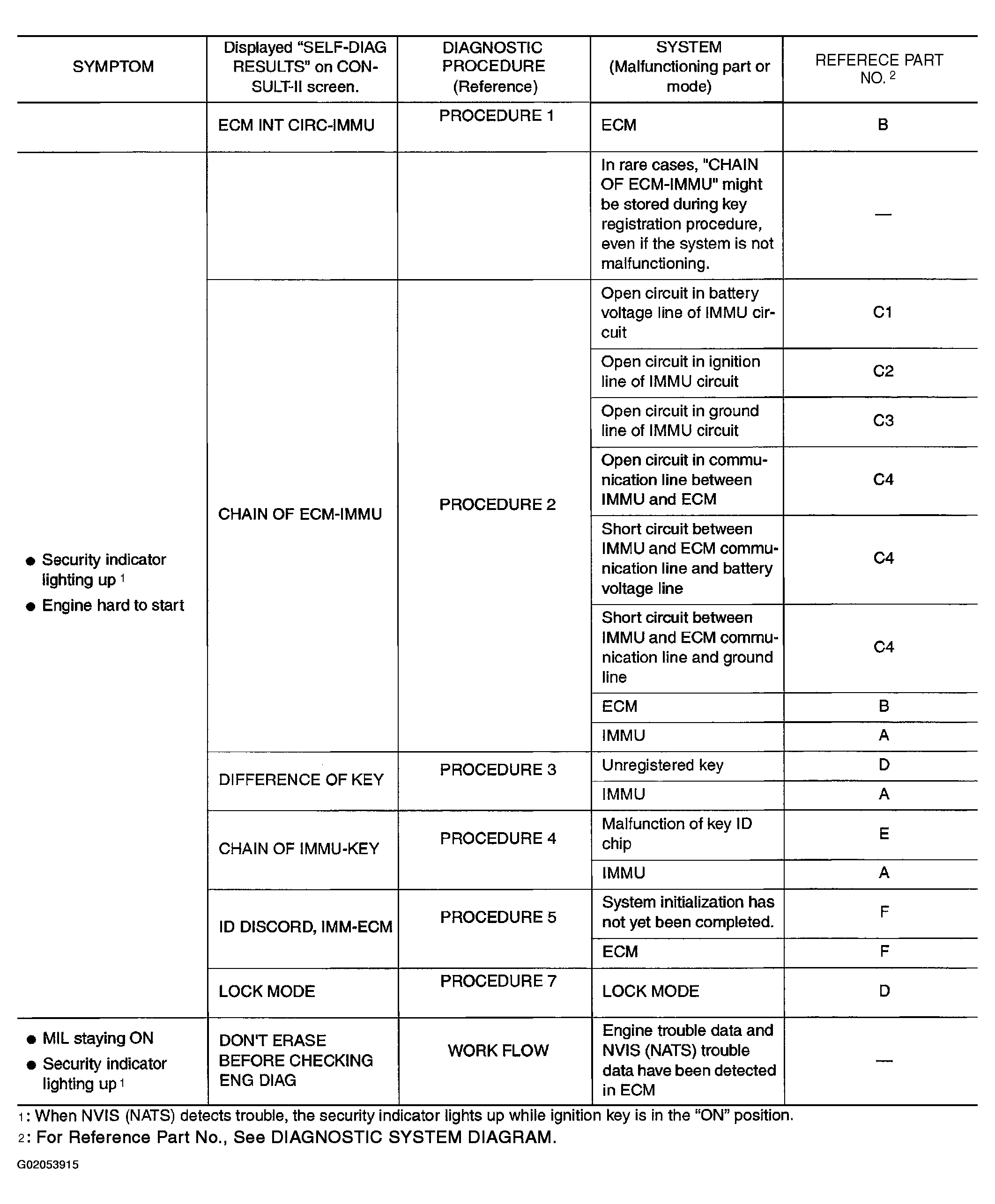

Fig 1: Nissan Vehicle Immobilizer System-Symptom Matrix Chart 1

Courtesy of NISSAN MOTOR CO., U.S.A.
