Removal And Installation
NOTE:
When the ignition switch is turned on after the TCU is replaced with the new one, the data will be updated by connecting to the server. Turn on the ignition switch, and wait approximately five minutes. The updating data will be completed and the TCU can communicate with the server. Talk with a call center from your information switch to check that the updating data is correctly completed, before delivering the vehicle to the user.
Pre-removal and Post-installation Operations
Instrument Panel Console Box Center Assembly Removal and Installation (Refer to INSTRUMENT CENTER PANEL ).

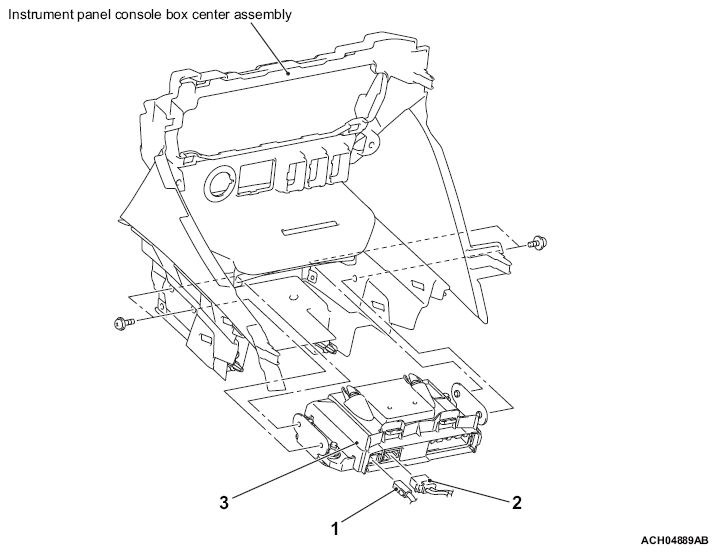

Instrument panel console box center assembly
| Removal steps | |
| 1 | Disconnection of the GNSS/TEL antenna assembly connector |
| 2. | Disconnection of the TEL antenna assembly connector |
| 3. | TCU |
