Disassembly And Reassembly: Notes

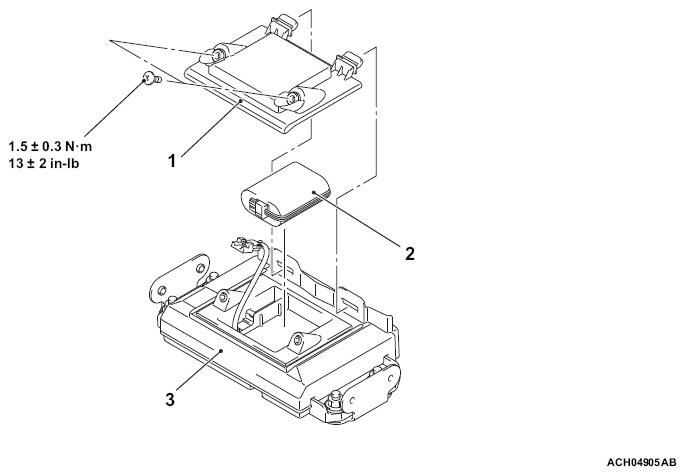

Fig 1: Disassembling/Reassembling TCU Components Location With Torque Specification
G16572504Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Removal steps
  1. TCU Battery cover
>>A<< 2. TCU Battery
  3. TCU
