User Troubleshooting Flow

When the TCU system does not operate properly, there are three major causes that can be considered.

  1. Failure on the vehicle.
  2. Failure on communication device (smartphone, mobile network, TSP server, mobile App).
  3. Communication error between vehicle and communication device (smartphone).

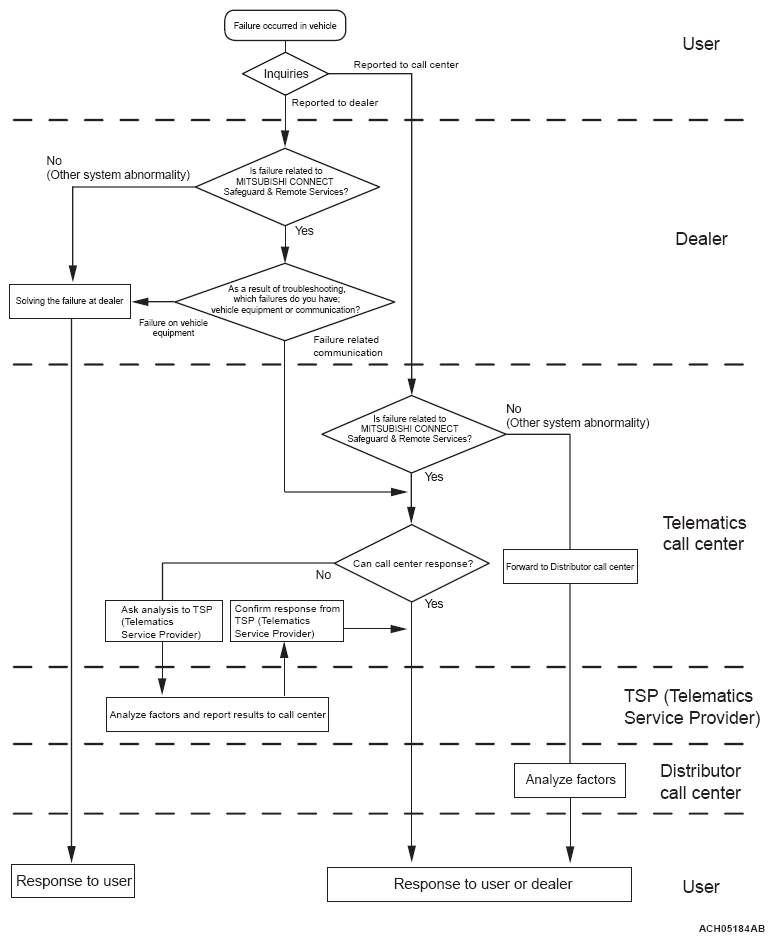

G12150874Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

As a result of troubleshooting, if it can be confirmed that there is no abnormality on the vehicle side, contact the telematics call center to inquire about the state of the vehicle and ask for correspondence.

Telematics Call Center contact No.: (888) 564-1411
