Inspection Procedure 8: Seat belt reminder function does not work normally: Notes

CAUTION: Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

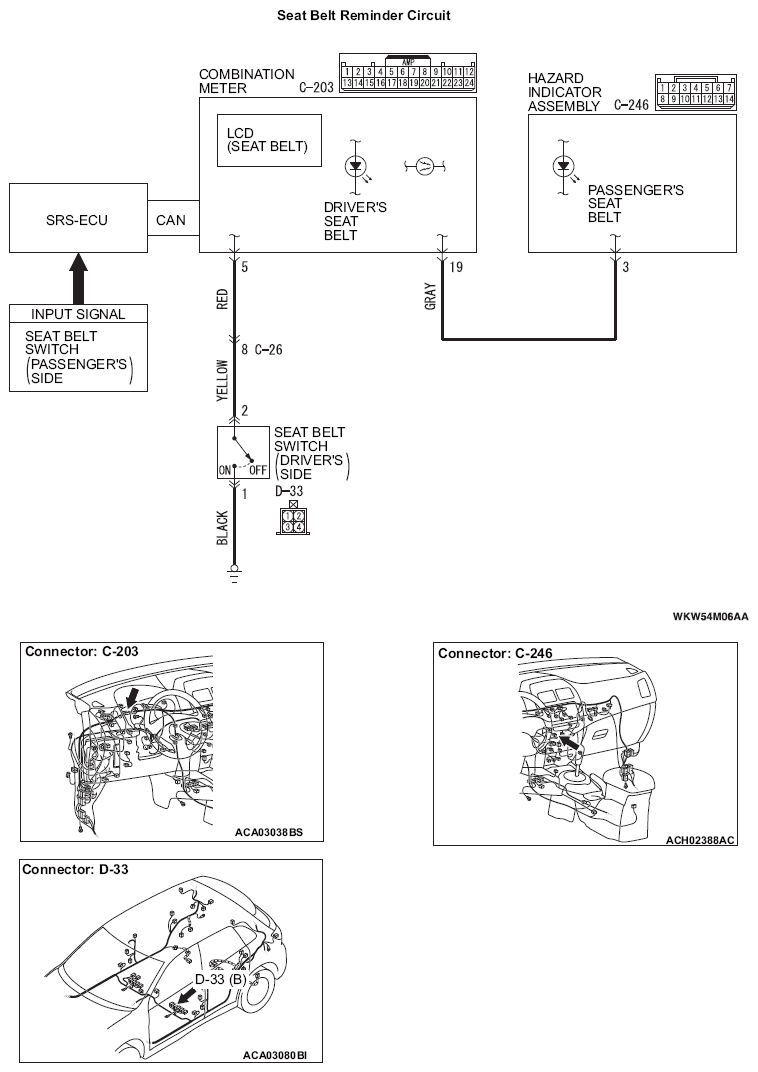

G14219531Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
