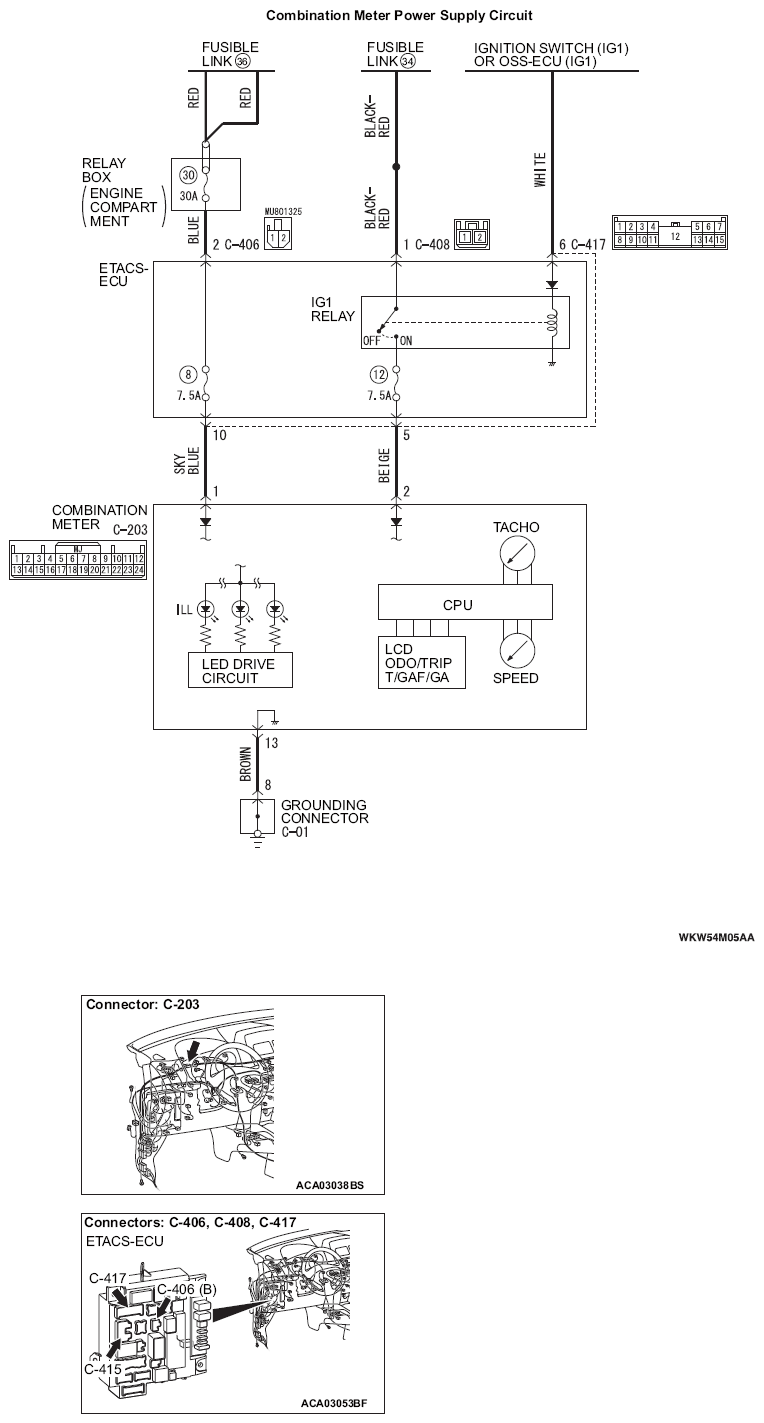

Inspection Procedure 1: Power supply circuit check: Notes

G14219524

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
