Nominal Resistance Of The Fuel Level Sensor
- Remove the fuel pump module (Refer to ON-VEHICLE SERVICE <Main>, FUEL LEVEL SENSOR (SUB) REPLACEMENT <AWD> <Sub>).

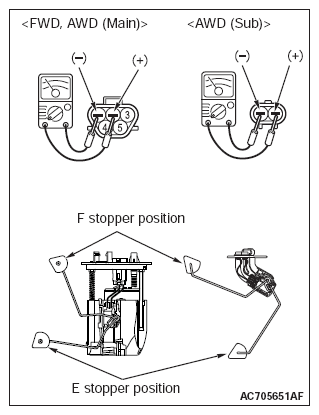

- When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.
<FWD> Standard value:
Float position Gauge resistance value (ohms) Stopper position "F" 13.0 ± 1.0 Stopper position "E" 120.0 ± 1.0 <AWD> Standard value:
Float position Gauge resistance value (ohms) Main Sub Stopper position "F" 6.5 ± 1.0 6.5 ± 1.0 Stopper position "E" 44.7 ± 1.0 75.3 ± 1.0 - When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.
