>> A << Reverse Idler Gear, Reverse Idler Thrust Washer And Reverse Idler Shaft Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the reverse idler gear, reverse idler thrust washer and reverse idler shaft.

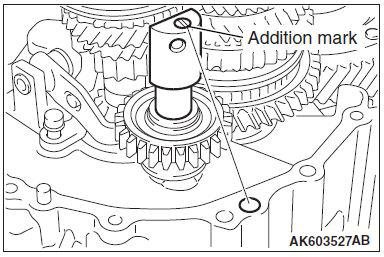

  2. Before installing the transaxle case assembly, confirm that the reverse idler gear addition mark is positioned as show in the illustration.
    Fig 1: Identifying Reverse Idler Gear Addition Mark
    G05375644Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
