<< A >> Cylindrical Roller Bearing (Outer Race) Removal

WARNING: This page is about a different variant/trim than selected.
  1. Using special tools MB990211 and MB992039, remove the cylindrical roller bearing (outer race).

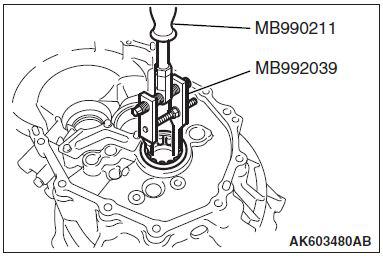

    Fig 1: Removing Cylindrical Roller Bearing Using Special Tools MB990211 And MB992039 (Outer Race)
    G05375698Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
