Inspection Procedure 9: One of the position light, the taillight, the rear side marker lights or the license plate light does not illuminate: Lancer

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

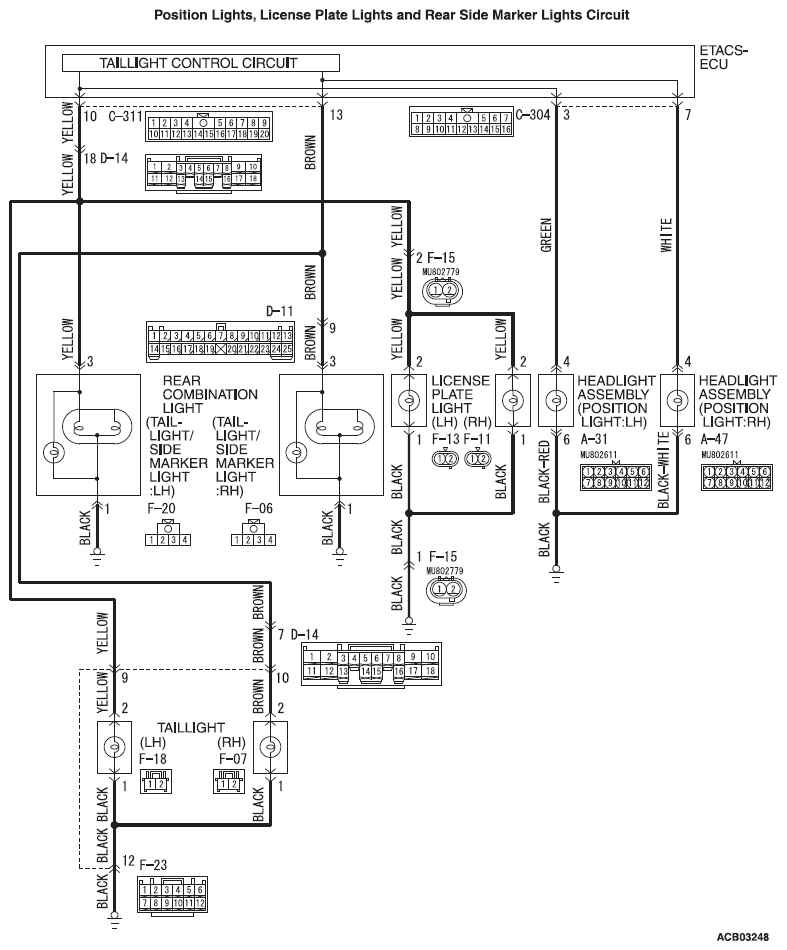

Fig 1: Position Lights, License Plate Lights And Rear Side Marker Lights Circuit Diagram
G09630020Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
