Inspection Procedure 5: One of the headlight(s) does not illuminate: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

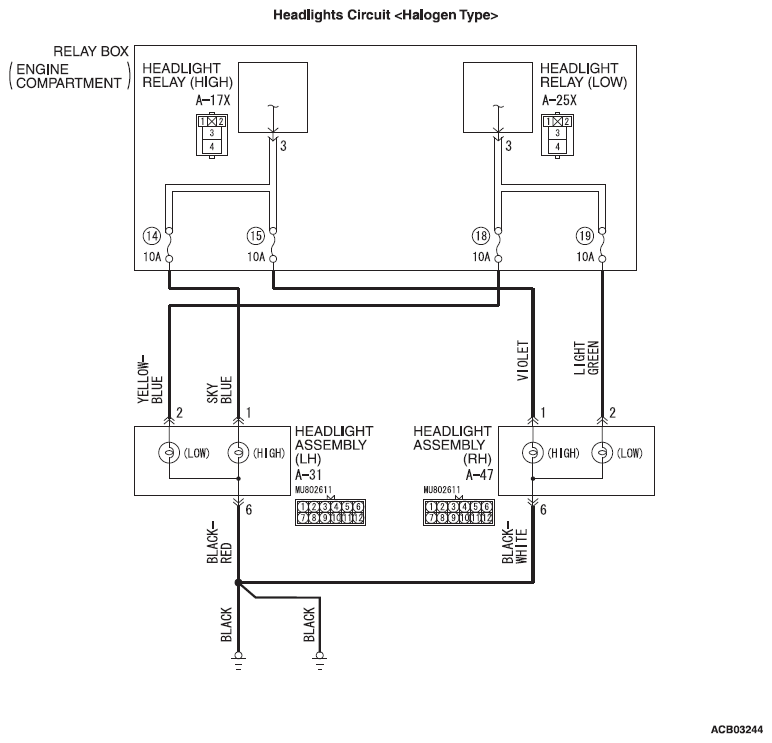

Fig 1: Headlights Circuit Diagram (Halogen Type)
G09630007Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

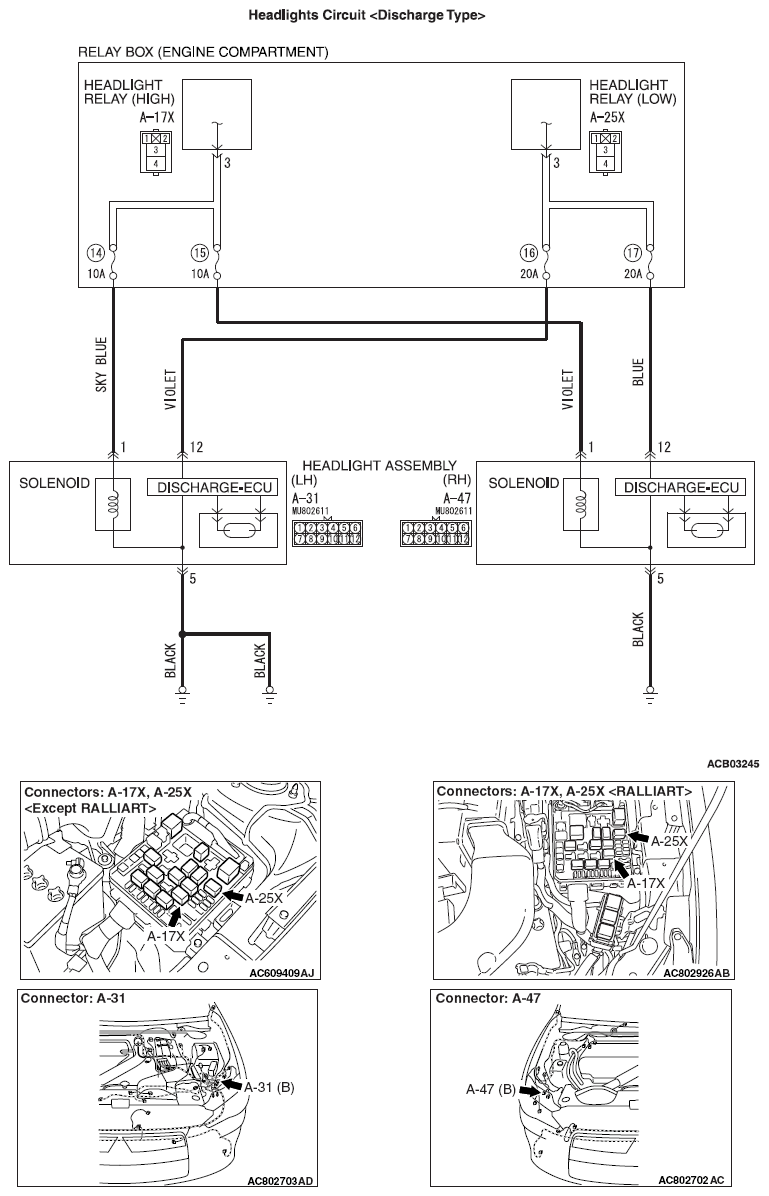

Fig 2: Headlights Circuit Diagram (Discharge Type)
G09630008Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
