Inspection Procedure 3: The headlights illuminate at low-beam (high-beam does not illuminate) regardless of the lighting switch positions: Diagnosis

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. Using scan tool MB991958, read the diagnostic trouble code.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958. Refer to "HOW TO CONNECT SCAN TOOL (M.U.T.-III) ."
2. Turn the ignition switch to the "ON" position.
3. Check whether the ETACS-ECU related DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?
1. YES: Diagnose the ETACS-ECU. Refer to DIAGNOSIS .
2. NO: Go to Step 2.

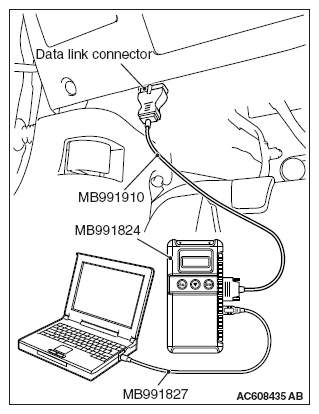

  Fig 1: Identifying Special Tools
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 2. Retest the system
Q: Do the headlights illuminate normally?
1. YES: The trouble can be an intermittent malfunction (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTION ).
2. NO: Replace the ETACS-ECU.
