Inspection Procedure 1: None of headlights (low-beam) illuminates: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Whenever the ECU is replaced, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

Fig 1: Headlight Relay (Low-Beam) Circuit Diagram (Halogen Type)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

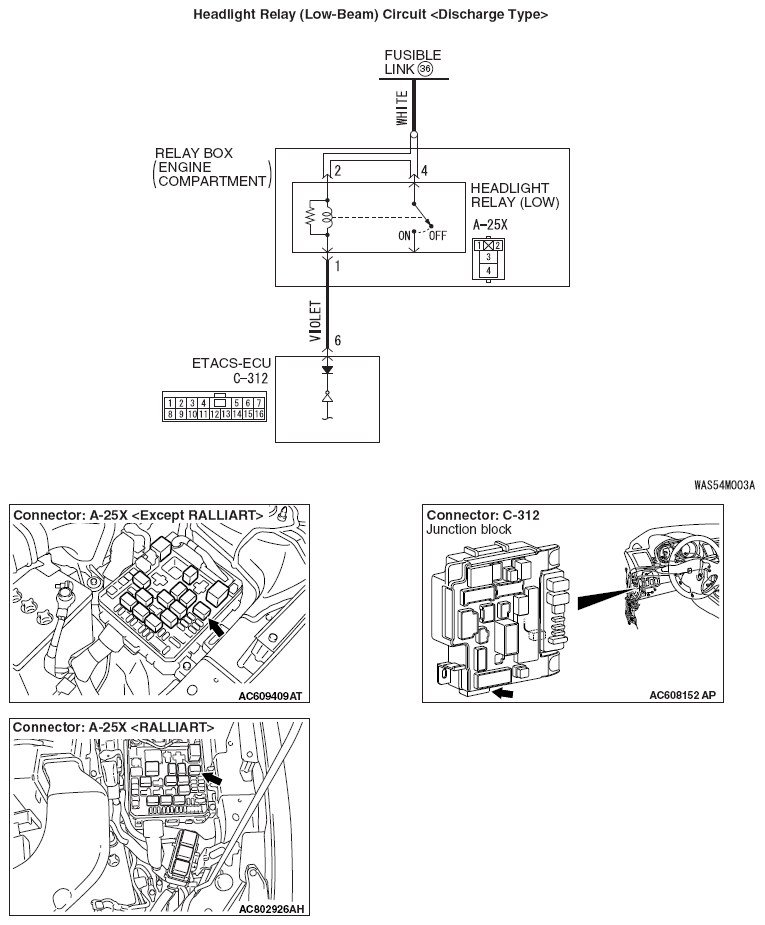

Fig 2: Headlight Relay (Low-Beam) Circuit Diagram (Discharge Type)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
