Headlight Bulb (High-Beam) Replacement (Vehicles Without Discharge Headlight)

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.
  1. Twist the socket cover to remove.
  2. Disconnect the connector, and twist the headlight bulb (high-beam) to remove.

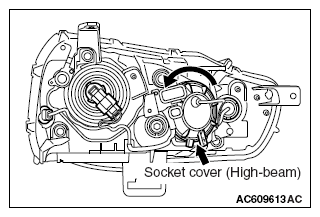

    Fig 1: Twisting Headlight Bulb (High-Beam)
    G09630042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
