Daytime Running Light Bulb Replacement (Vehicles With Discharge Headlight)

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Twist the socket cover to remove.
  2. Twist the daytime running light socket to remove it.

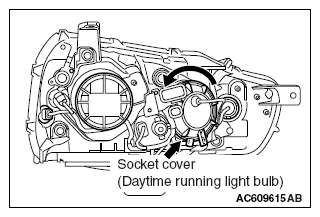

    Fig 1: Twisting Socket Cover
    G09630043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
