Lighting Control Sensor Removal And Installation: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

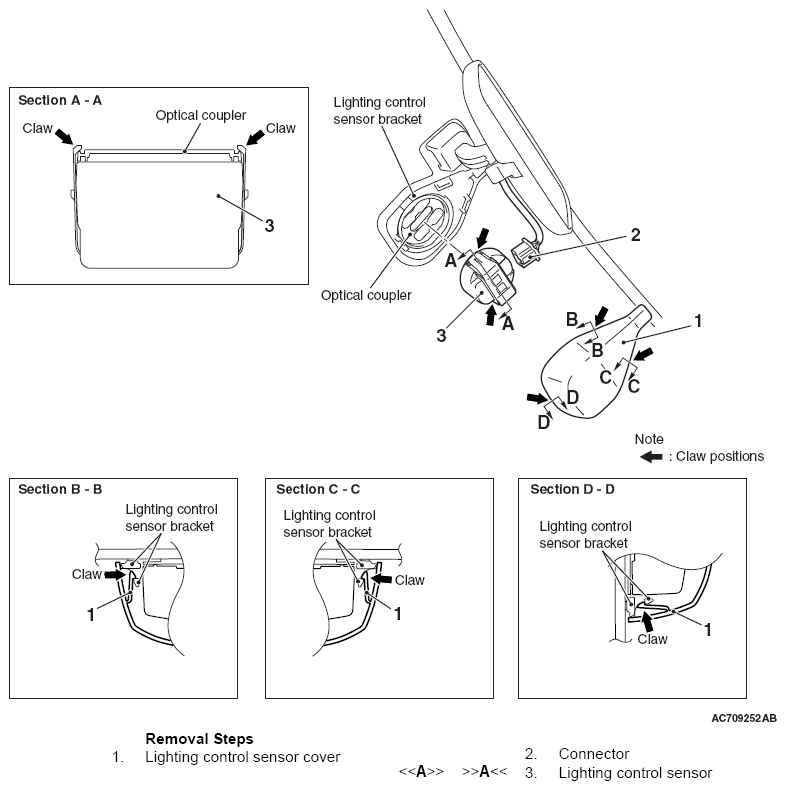

Fig 1: Views Of Lighting Control Sensor
G09630056Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
