Headlight Control Unit (Harness) Removal (Vehicles With Discharge Headlight)

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
  1. As shown in the figure, use the commercial tool to remove it.
    Fig 1: Identifying Commercial Tool
    G09630047Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. To insert the tool available in the market into the headlight assembly from the opening at the ignitor side, firstly remove the headlight control unit, the socket cover, the ignitor and the ground connector.

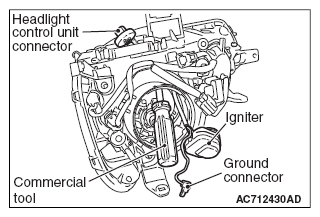

    Fig 2: Removing Headlight Control Unit
    G09630048Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Using the commercial tool, make the resin washer sag to push up the harness above the resin washer.
  4. Pull out the harness from the headlight assembly.
