Headlight Bulb Removal (Vehicles With Discharge Headlight)

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.

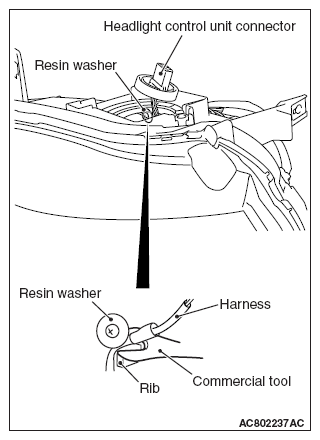

Fig 1: Pushing Harness Up From Resin Washer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Twist the socket cover to remove.

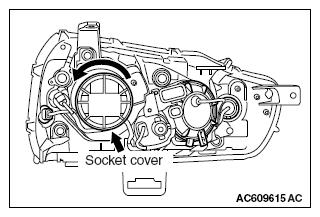

Fig 2: Twisting Socket Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Disconnect the igniter.

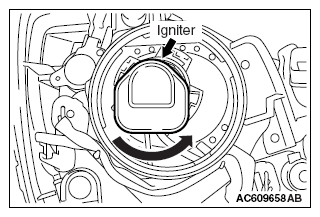

Fig 3: Disconnecting Igniter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Release the bulb securing spring, and remove the bulb.

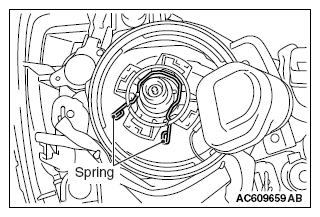

Fig 4: Identifying Bulb Securing Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
