Headlight Removal And Installation: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

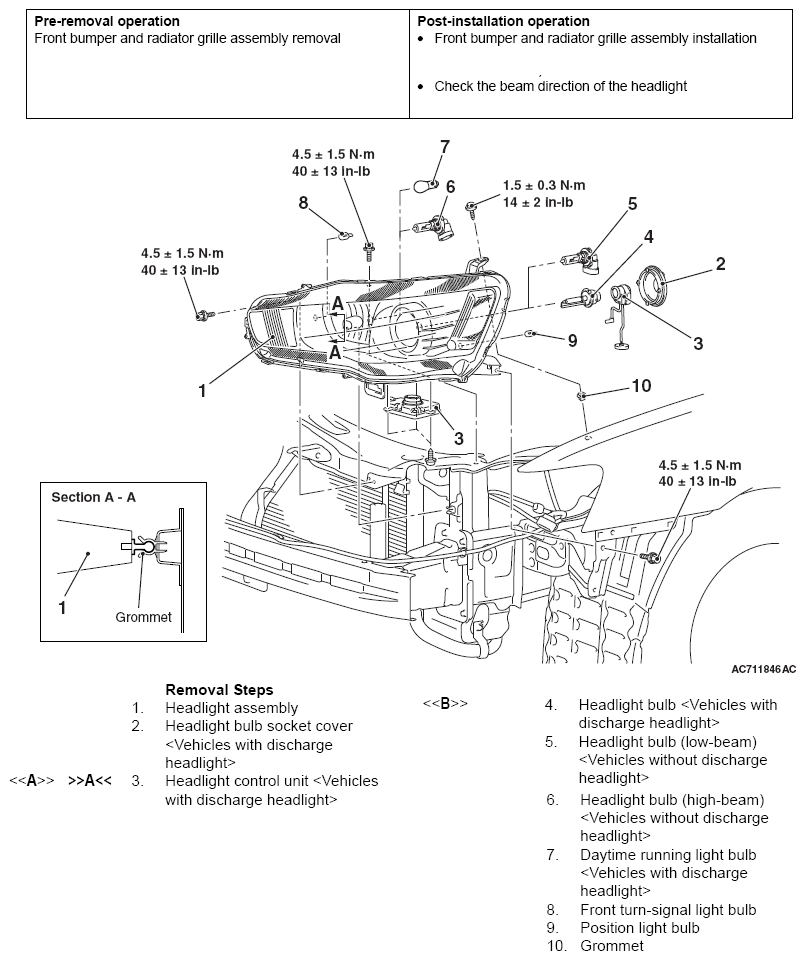

Fig 1: Exploded View Of Headlight Assembly With Torque Specifications
G09630046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
