Headlight Control Unit Installation (Vehicles With Discharge Headlight)

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
  1. As shown in the figure, doubly wrap the portion in the vinyl tape, from the headlight control unit connector root to the point where the harness separation is hidden.
    Fig 1: Identifying Plastic Tape And Headlight Control Unit Connector
    G09630053Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the harness to the headlight assembly. At that time, fitting the harness into the resin washer is unnecessary.

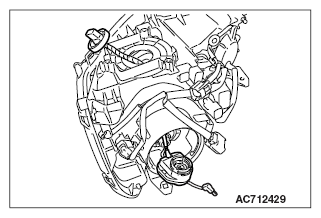

    Fig 2: Identifying Routing Of Headlight Assembly Harness
    G09630054Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
