Lancer SPORTBACK: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

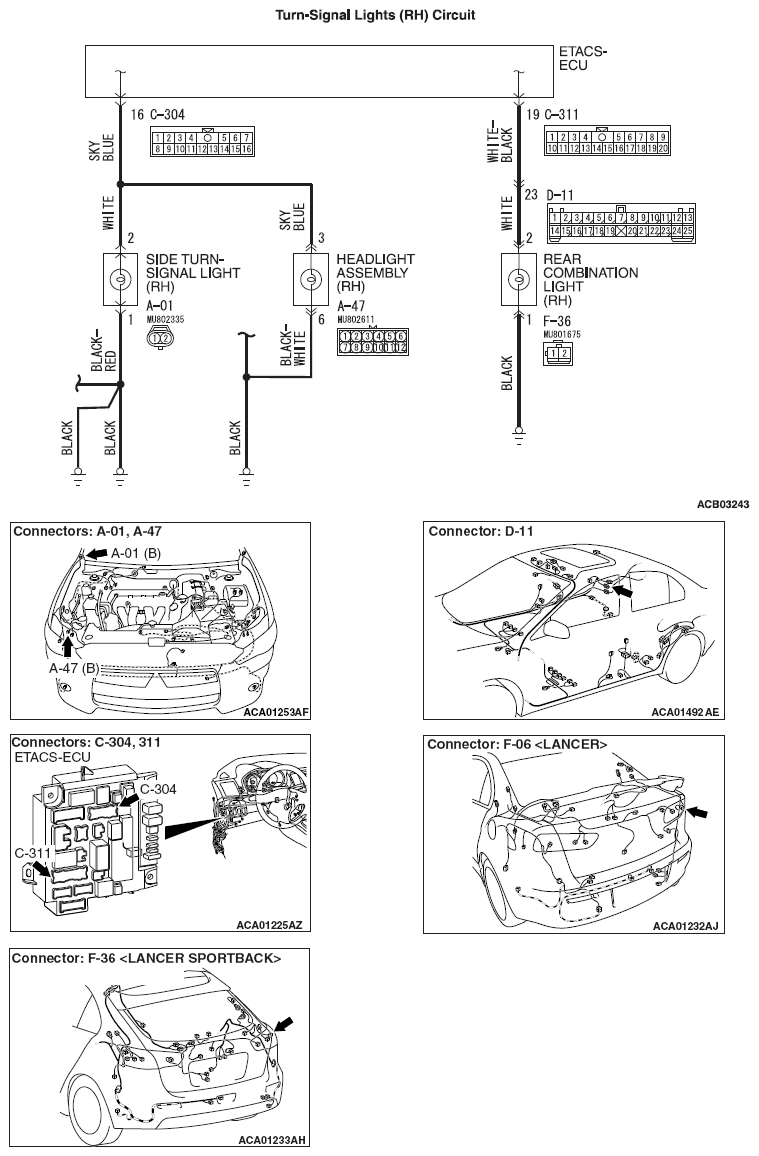

Fig 1: Turn-Signal Lights (RH) Circuit Diagram (Lancer Sportback)
G09629996Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
