DTC B16A3: Turn-signal light (LH) short circuit: Lancer

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

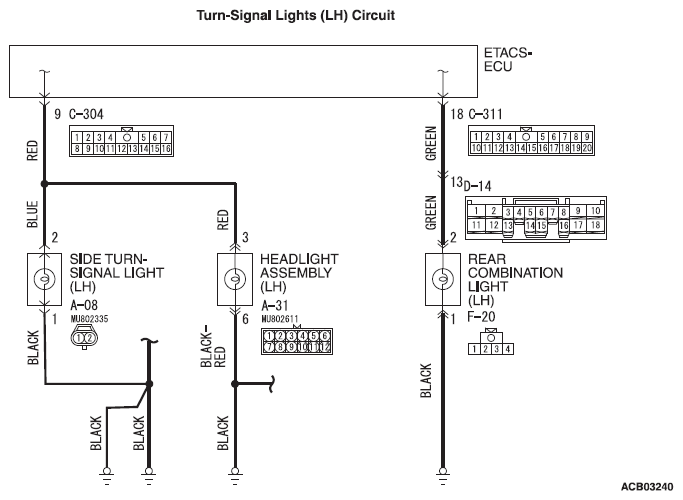

Fig 1: Turn-Signal Lights (LH) Circuit Diagram
G09629985Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
