INSPECTION PROCEDURE 3: The Compressor does not Work: Diagnosis

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

  1. STEP 1. Using scan tool MB991958, diagnose the CAN bus line  .
    CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
    1. Connect scan tool MB991958. Refer to "HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)  ."
    2. Turn the ignition switch to the "ON" position.
    3. Diagnose the CAN bus line.
    4. Turn the ignition switch to the "LOCK" (OFF) position.

    Q: Is the CAN bus line found to be normal?

    • YES:  Go to Step 2.
    • NO:  Repair the CAN bus lines (Refer to DIAGNOSIS ).
      Fig 1: Connecting Special Tool MB991910 To Data Link Connector
      G09631158Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. STEP 2. Using scan tool MB991958, read the diagnostic trouble code  .

    Check if an A/C controller assembly (A/C-ECU) DTC is set.

    1. Connect scan tool MB991958 to the data link connector.
    2. Turn the ignition switch to the "ON" position.
    3. Check if the DTC is set.
    4. Turn the ignition switch to the "LOCK" (OFF) position.

    Q: Is the DTC set?

  3. STEP 3. Check A/C compressor assembly connector B-14 for loose, corroded or damaged terminals, or terminals pushed back in the connector  .

    Q: Is A/C compressor assembly connector B-14 in good condition?

  4. STEP 4. Check the A/C compressor clutch operation  .

    Connect the compressor connector terminal to the battery positive (+) terminal and ground the battery's negative (-) terminal to the compressor unit. At that time, the A/C compressor clutch should make a definite operating sound.

    Q: Can the sound (click) of the A/C compressor clutch operation be heard?

    • YES:  Go to Step 5.
    • NO:  Replace the compressor magnet clutch.
      Fig 2: Connecting Compressor Connector Terminal To Battery Positive Terminal
      G09631159Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. STEP 5. Check A/C compressor clutch relay connector A-13X for loose, corroded or damaged terminals, or terminals pushed back in the connector  .

    Q: Is A/C compressor clutch relay connector A-13X in good condition?

  6. STEP 6. Check the A/C compressor clutch relay continuity  .

    Follow the table below to check the A/C compressor clutch relay for continuity.

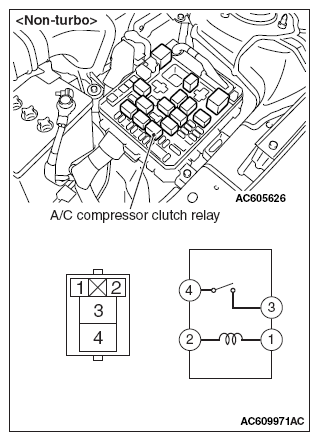

    Fig 3: Identifying A/C Compressor Clutch Relay (Non-Turbo)
    G09631160Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    BATTERY VOLTAGE TESTER CONNECTION SPECIFIED CONDITION
    Not applied 3 - 4 Open circuit
    • Connect terminal 2 to the positive battery terminal
    • Connect terminal 1 to the negative battery terminal
    		 3 - 4 Less than 2 ohms

    Q: Is the A/C compressor clutch relay in good condition?

    • YES:  Go to Step 7.
    • NO:  Replace the A/C compressor clutch relay.

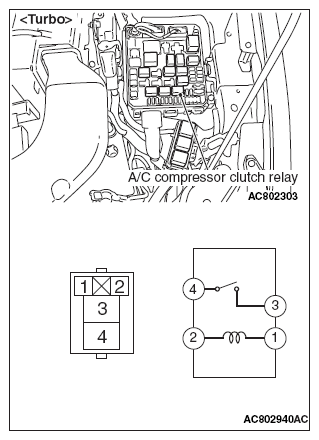

      Fig 4: Identifying A/C Compressor Clutch Relay (Turbo)
      G09631161Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. STEP 7. Check engine control module connector B-109 for loose, corroded or damaged terminals, or terminals pushed back in the connector  .

    Q: Is engine control module connector B-109 in good condition?

  8. STEP 8. Measure the voltage at A/C compressor assembly connector B-14  .
    1. Disconnect A/C compressor assembly connector B-14 and measure the voltage at the wiring harness side.
    2. Disconnect powertrain control module connector B-109 and ground harness side terminal No. 102.
    3. Turn the ignition switch to the "ON" position.
    4. A/C compressor assembly connector B-14 terminal 1 and ground.
      • The measured value should be approximately 12 volts (battery positive voltage).

    Q: Is the measured voltage approximately 12 volts?

    • YES:  Go to  Step 13.
    • NO:  Go to Step 9.
      Fig 5: Checking Voltage Between A/C Compressor Assembly Connector B-14 Terminal 1 And Ground
      G09631162Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  9. STEP 9. Measure the voltage at A/C compressor clutch relay connector A-13X  .
    1. Disconnect A/C compressor connector A-13X and measure the voltage at the relay box side.
    2. Turn the ignition switch to the "ON" position.
    3. Measure the voltage between terminal 4 and ground.
      • The measured value should be approximately 12 volts (battery positive voltage).
    4. Measure the voltage between terminal 2 and ground.
      • The measured value should be approximately 12 volts (battery positive voltage).

    Q: Is the measured voltage approximately 12 volts?

    • YES:  Go to  Step 11.
    • NO:  Go to Step 10.
      Fig 6: Measuring Voltage Between Terminal 4 And Ground
      G09631163Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  10. STEP 10. Check the wiring harness between A/C compressor clutch relay connector A-13X (terminals 2 and 4) and the fusible link (36)  .
    • Check the A/C compressor clutch relay power supply line for open circuit.

    Q: Is the wiring harness between A/C compressor clutch relay connector A-13X (terminals 2 and 4) and the fusible link (36) in good condition?

  11. STEP 11. Check the wiring harness between A/C compressor clutch relay connector A-13X (terminal 3) and A/C compressor assembly connector B-14 (terminal 1)  .
    NOTE: Also check intermediate connector A-10 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector A-10 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .
    • Check the A/C compressor assembly power supply line for open circuit.

    Q: Is the wiring harness between A/C compressor clutch relay connector A-13X (terminal 3) and A/C compressor assembly connector B-14 (terminal 1) in good condition?

    • YES:  Go to Step 12.
    • NO:  Repair the wiring harness. Check that the A/C works normally.
  12. STEP 12. Check the wiring harness between powertrain control module connector B-109 (terminal 102) and A/C compressor clutch relay connector A-13X (terminal 1)  .
    • Check the powertrain control module signal line for open and short circuit.

    Q: Is the wiring harness between powertrain control module connector B-109 (terminal 102) and A/C compressor clutch relay connector A-13X (terminal 1) in good condition?

  13. STEP 13. Check the refrigerant temperature switch  .
    CAUTION: Do not heat more than necessary.
    1. Dip the metal part of the cooling temperature switch into engine oil and increase the oil temperature using a gas burner or similar.
      CAUTION: Do not heat more than necessary.
      Fig 7: Checking Refrigerant Temperature Switch
      G09631164Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. When the oil temperature reaches the standard value, check that voltage is supplied between the terminals.
      ITEM TEMPERATURE SPECIFICATION (STANDARD VALUE)

      Item Temperature
      Less than 2 ohms Slightly below 120°C (248°F)
      No continuity 135°C (275°F) or more
      Fig 8: Oil Temperature Graph
      G09631165Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      NOTE: When the oil temperature is 135°C (275°F) or more and there is no continuity, the resistance will not be 2O or lower until the oil temperature reduces to 120°C (248°F) or less.

    Q: Is the refrigerant temperature switch operating properly?

    • YES:  Go to Step 14.
    • NO:  Replace the refrigerant temperature switch. Check that the A/C works normally.
  14. STEP 14. Replace the A/C controller assembly (A/C-ECU)  .

    Q: Does the A/C operate normally?

    • YES:  No action is necessary and testing is complete.
    • NO:  Replace the powertrain control module. Check that the A/C works normally.
