DIAGNOSTIC ITEM 4: Diagnose shorts in the ground to CAN-C bus line: Notes
WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

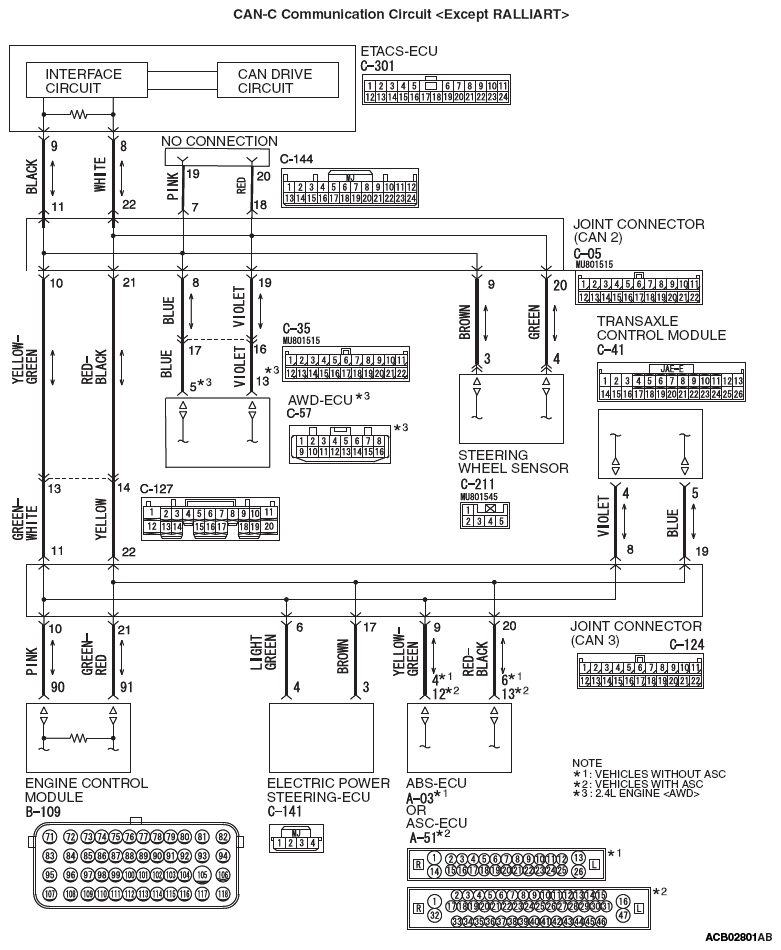

Fig 1: CAN-C Communication Circuit Diagram - Except Ralliart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

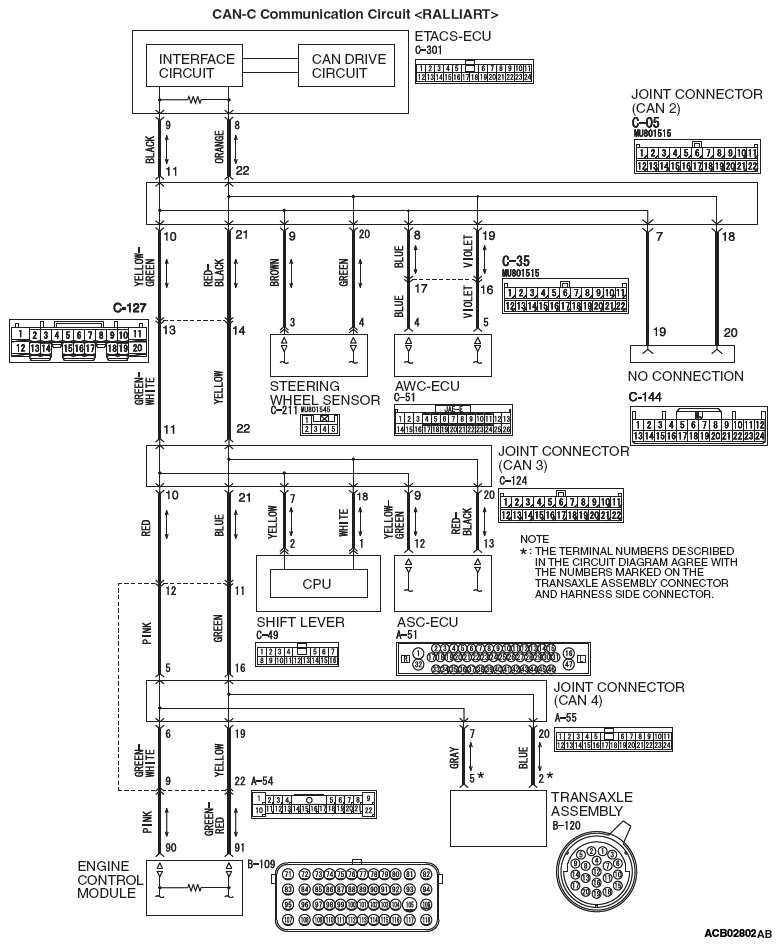

Fig 2: CAN-C Communication Circuit Diagram - Ralliart (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

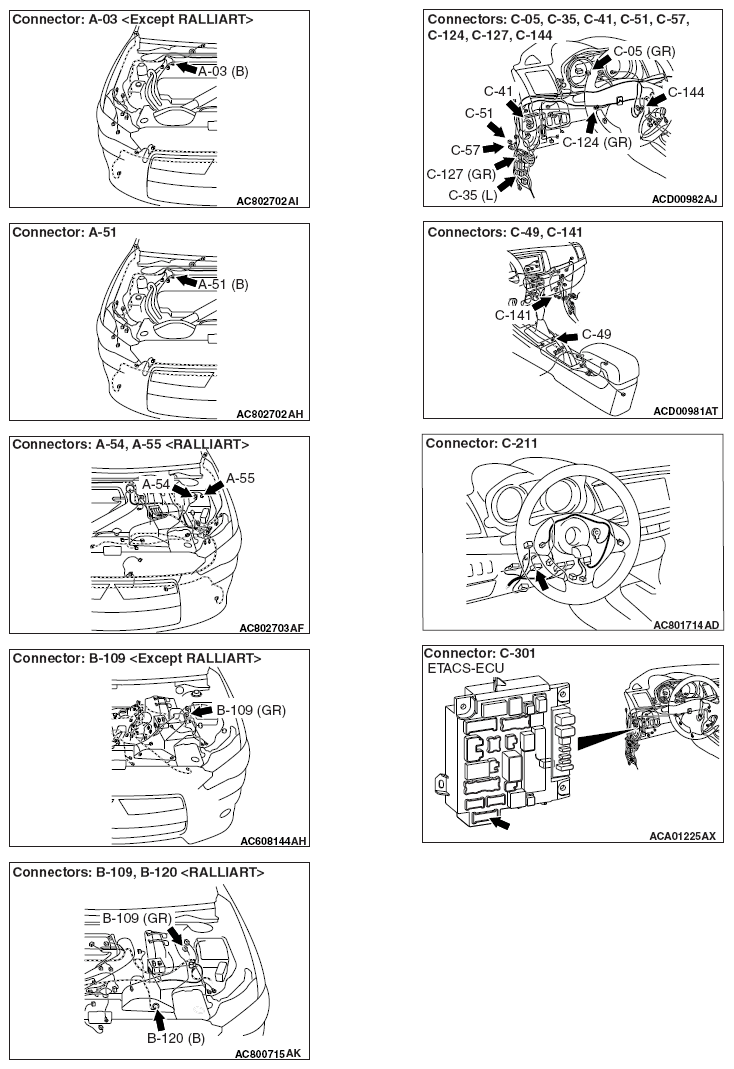

Fig 3: CAN-C Communication Circuit Diagram - Ralliart (2 Of 2)
