DIAGNOSTIC ITEM 3: Abnormal short between the CAN-C bus lines: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

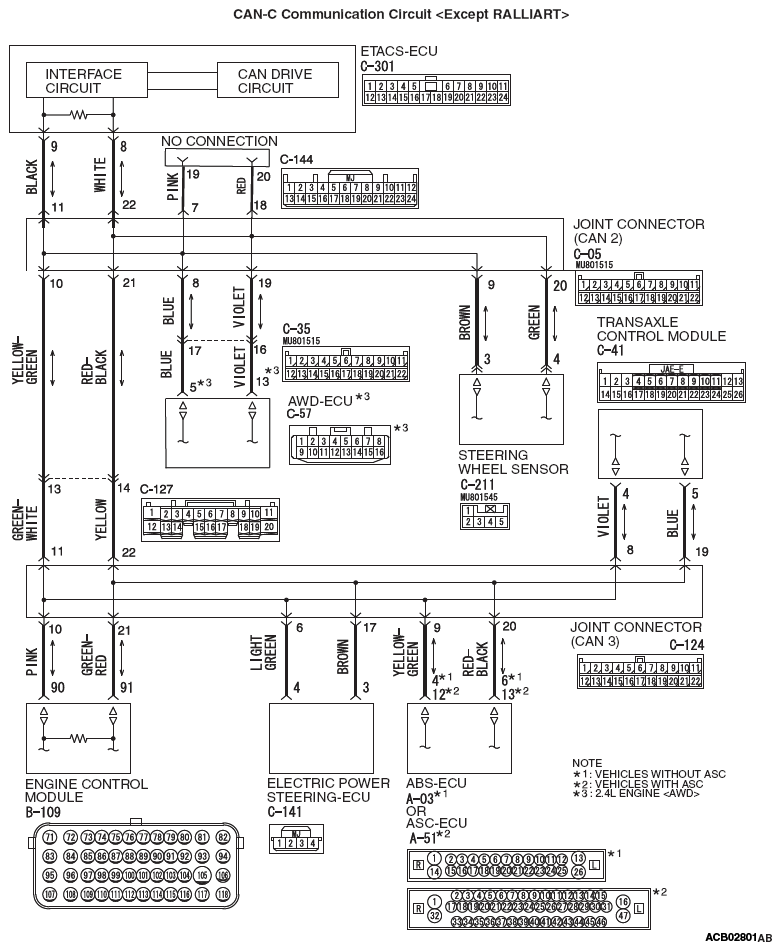

Fig 1: CAN-C Communication Circuit Diagram - Except Ralliart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

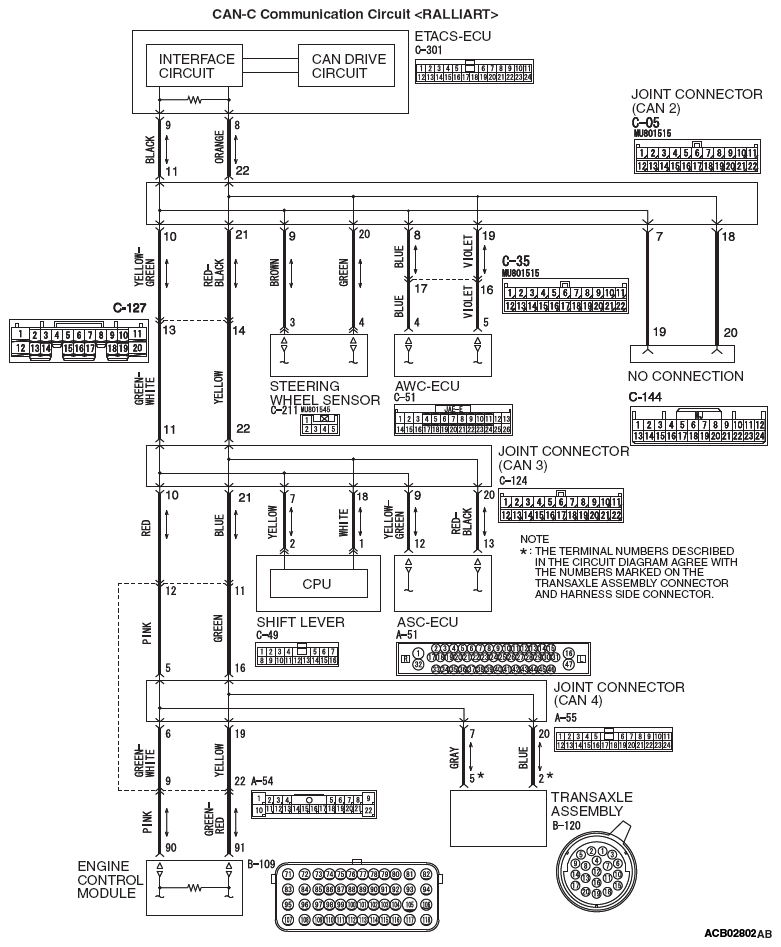

Fig 2: CAN-C Communication Circuit Diagram - Ralliart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: CAN-C Communication Circuit Diagram - Ralliart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
