DIAGNOSTIC ITEM 17: Diagnose the lines between joint connector (CAN3) and joint connector (CAN4) < RALLIART >: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

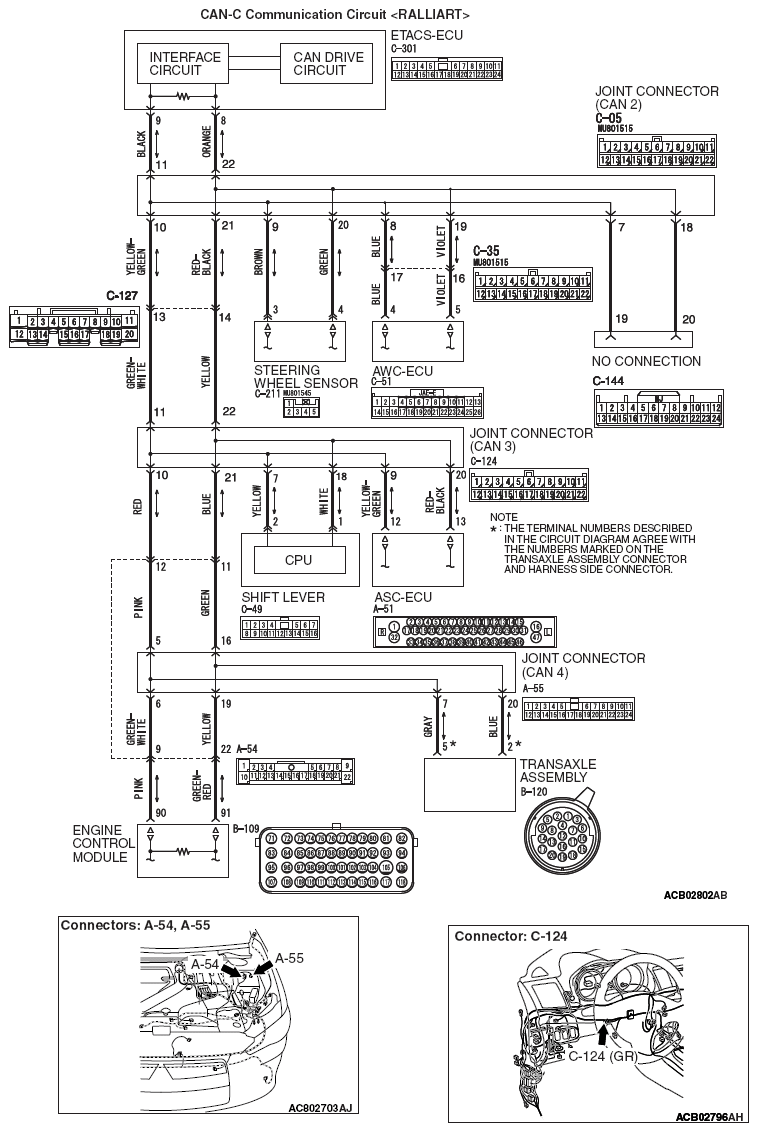

Fig 1: CAN-C Communication Circuit Diagram - Ralliart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
