Removal And Installation: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

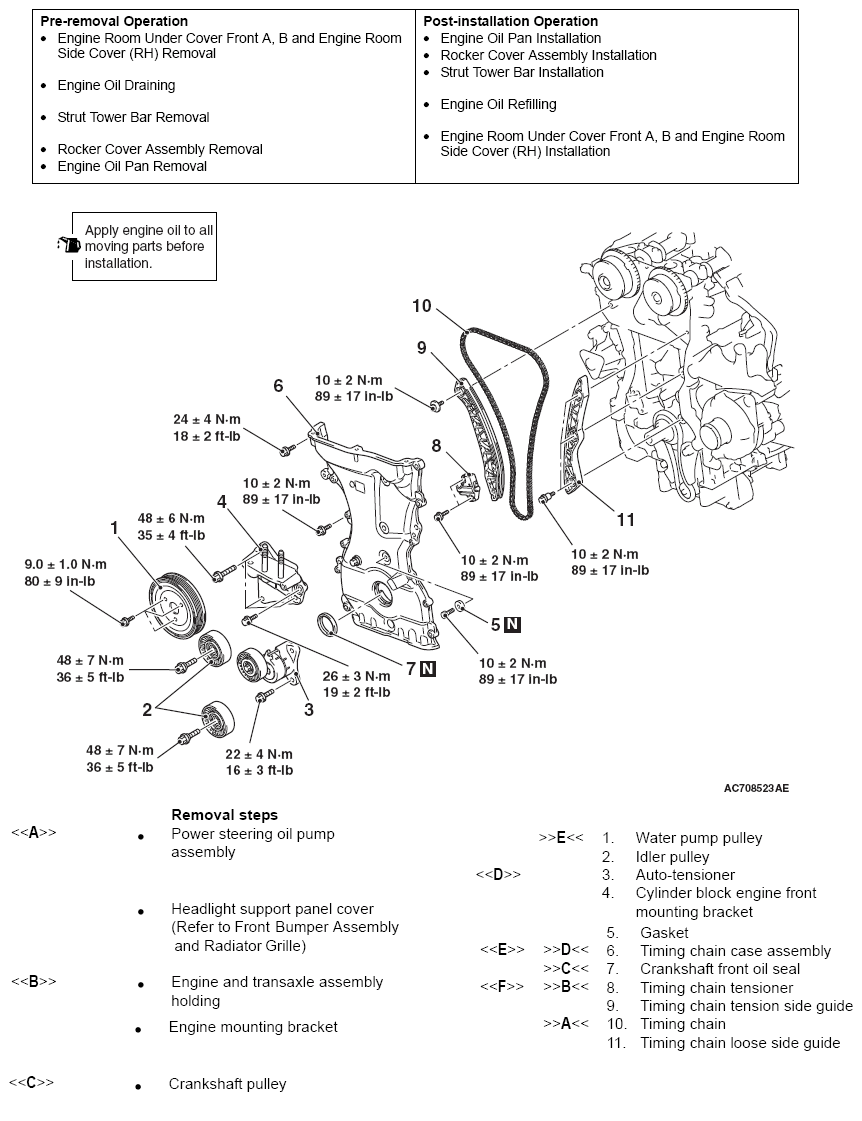

Fig 1: Timing Chain Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991454: Engine Hanger Balancer
MB991895: Engine Hanger
MB991928: Engine Hanger
MB991448: Bush Remover and Installer Base
