Special Tool

WARNING: This page is about a different variant/trim than selected.

Tool	Tool number and name	Supersession	Application
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992080 Belt tension meter set MB9912081 Belt tension meter MB992082 Microphone assembly	Tool not available	Drive belt tension (frequency) measurement

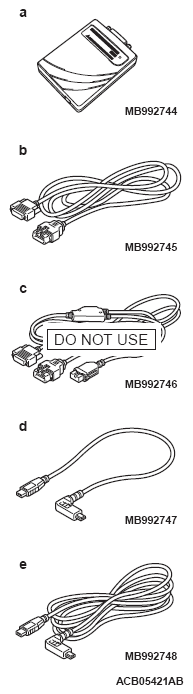

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992744 Vehicle communication interface-Lite (V.C.I.-Lite) MB992745 V.C.I.-Lite main harness A (for vehicles with CAN communication) MB992746 V.C.I.-Lite main harness B (for vehicles without CAN communication) MB992747 V.C.I.-Lite USB cable short MB992748 V.C.I.-Lite USB cable long	-	Standard ignition timing check Idle speed check Reading diagnostic trouble code MFI system inspection Measurement of fuel pressure

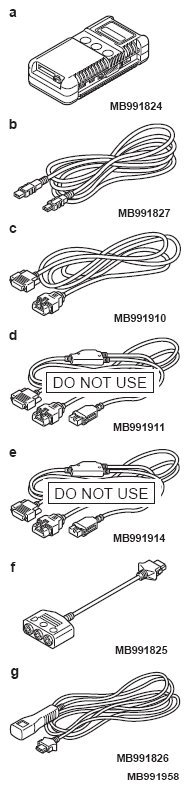

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 Scan tool (M.U.T.-III sub assembly) MB991824 Vehicle communication interface (V.C.I.) MB991827 M.U.T.-III USB cable MB991910 M.U.T.-III main harness A (Vehicles with CAN communication system) MB991911 M.U.T.-III main harness B (Vehicles without CAN communication system) MB991914 M.U.T.-III main harness C (for Chrysler models only) MB991825 M.U.T.-III adapter harness MB991826 M.U.T.-III trigger harness	MB991824-KIT NOTE: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly. Reading diagnostic trouble code MFl system inspection Measurement of fuel pressure
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992110 Power plant ECU check harness	-	Inspection using an oscilloscope Inspection of the engine control module (ECM) terminal voltage check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991709 Test harness	MB991709-01	Inspection using an oscilloscope
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991658 Test harness	Tool not available	Inspection using an oscilloscope Inspection of throttle position sensor Inspection of heated oxygen sensor Inspection of engine oil control valve Inspection of heated oxygen sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992049	MB992049-01	Measurement of fuel pressure
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992001 Hose adaptor	-	Measurement of fuel pressure
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991981 Fuel pressure gauge set	Tool not available	Measurement of fuel pressure
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992076 Injector test set	-	Measurement of fuel pressure
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MD998709	Hose adapter	Measurement of fuel pressure
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992042 Engine coolant temperature sensor wrench	-	Removal and installation of the engine coolant temperature sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992106 O-ring installer	-	Installation of O-ring on fuel injector injection nozzle side
