Nominal Resistance Of The Fuel Level Sensor
- Remove the fuel pump module (Refer to
FUEL PUMP MODULE REPLACEMENT
) < Main >.
- Remove the fuel level sensor (Refer to
FUEL LEVEL SENSOR (SUB) REPLACEMENT
< AWD >) < Sub >.

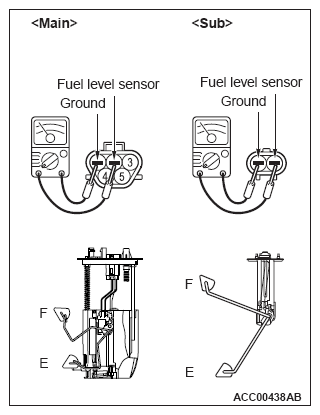

- When float of the fuel level sensor is in stopper positions "F" and "E", ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.
STANDARD VALUE
| Float position |
Gauge resistance value (ohms) |
| Main |
Sub |
| Stopper position "F" |
6.5 ± 1.0 |
6.5 ± 1.0 |
| Stopper position "E" |
44.7 ± 1.0 |
75.3 ± 1.0 |
- When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.
