Removal And Installation

WARNING: This page is about a different variant/trim than selected.

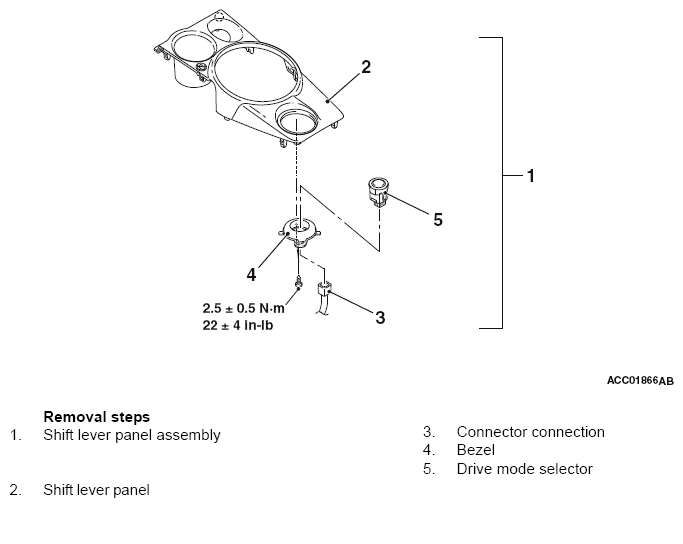

Fig 1: Removing/Installing Drive Mode Selector Components With Torque Specification
G09670225Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
