Code No. C1460: Mode SW performance: Notes

WARNING: This page is about a different variant/trim than selected.

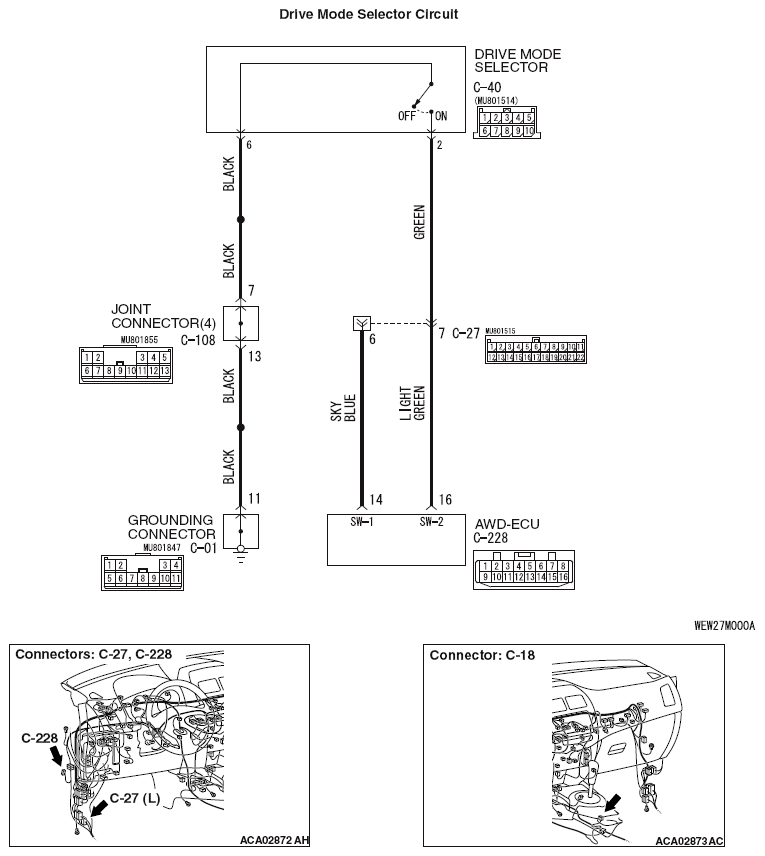

Fig 1: Drive Mode Selector Circuit Diagram (C1460)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be stored. Prior to this diagnosis, always diagnose the CAN bus lines.
