Removal And Installation

WARNING: This page is about a different variant/trim than selected.

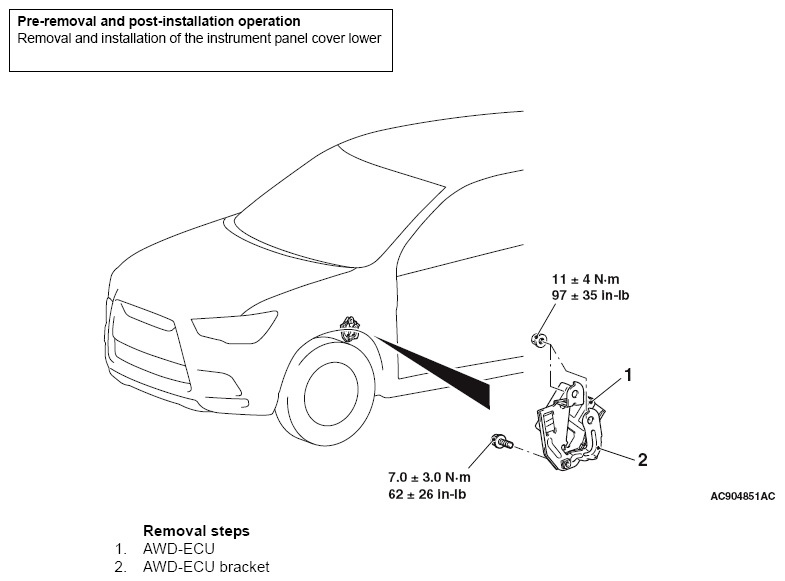

Fig 1: Removing/Installing AWD-ECU Components With Torque Specification
G09670224Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
