Oil Change

  1. Remove the engine room under cover front B assembly. (Refer to REMOVAL AND INSTALLATION .)
  2. Remove the drain plug and gasket to drain the oil.
  3. Install the drain plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  4. Remove the filler plug and gasket, then fill the oil up to the lower edge of the filler plug hole.

    Brand name: Mitsubishi Motors Genuine LSD gear oil

    Quantity: 0.8 dm 3  (0.85 quarts)

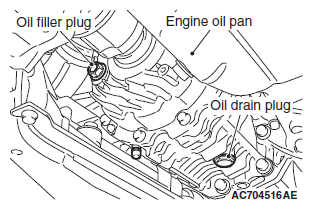

    Fig 1: Identifying Oil Drain Plug, Engine Oil Pan And Plug
    G06676886Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Install the filler plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  6. Install the engine room under cover front B assembly. (Refer to REMOVAL AND INSTALLATION .)
    Fig 2: Identifying Filler Plug, Hole And Gasket
    G06480808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
