Heating, Air Conditioning & Ventilation - With Diagnostics - Lancer
>>
Refrigerant Line
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

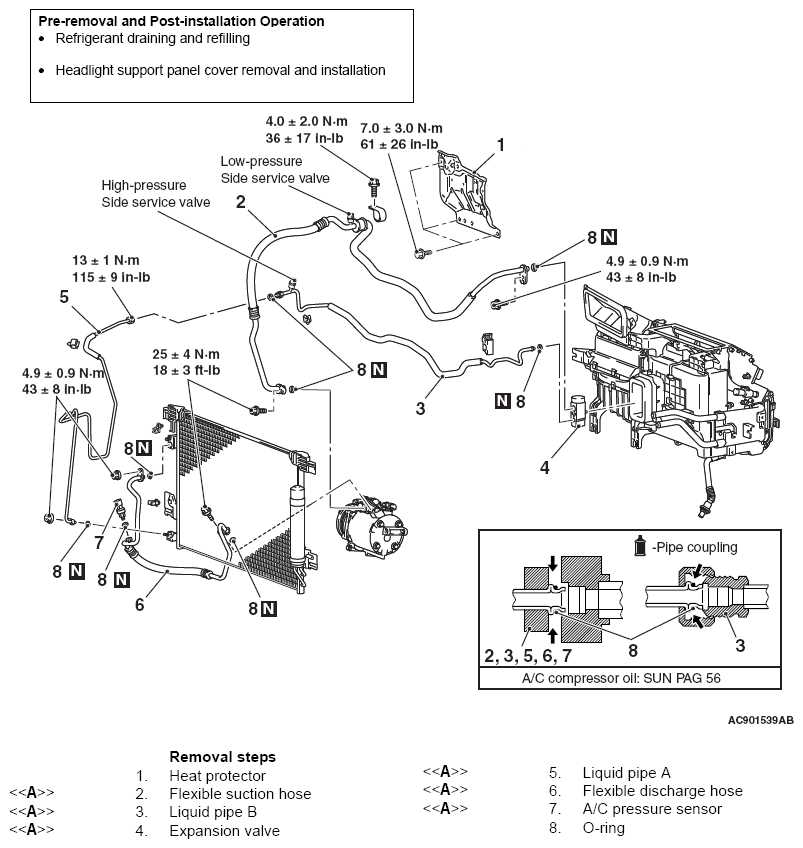

Fig 1: Removing/Installing Refrigerant Line Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
