HVAC Control Systems
>>
Heating, Air Conditioning & Ventilation - With Diagnostics - Lancer
>>
On-Vehicle Service
>>
Power Relay Check
>>
Blower Relay Continuity Check
Blower Relay Continuity Check
Battery voltage
Tester connection
Specified condition
Not applied
3 - 4
Open circuit
Connect terminal 1 to the positive battery terminal
Connect terminal 2 to the negative battery terminal
3 - 4
Less than 2 ohms

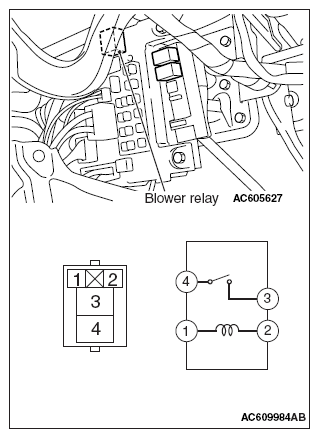

Fig 1: Identifying Blower Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
